This Module is currently available.

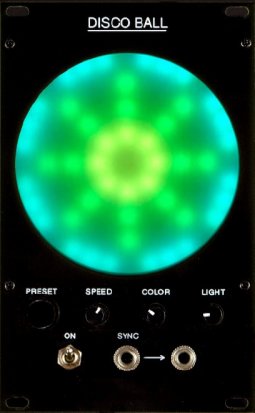

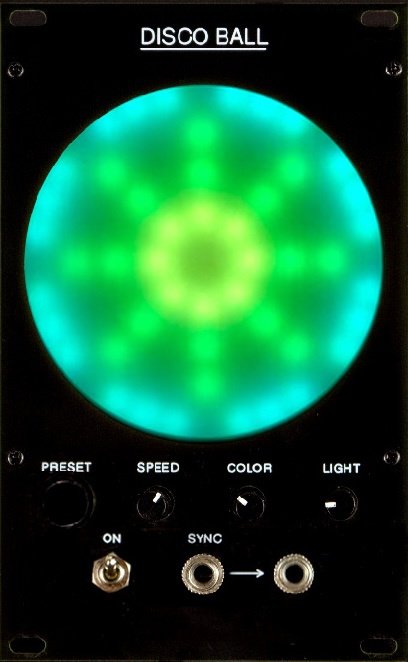

"Discoball" visual pattern generator / visualizer
This is visual pattern generator
It features a large round 70mm screen and 11 algorithms/presets.
Each preset offers 8 vibrant color options, including multicolor and dynamic changing modes.
Just plug in your gate/trigger signal and watch your music sync with the visuals!
Presets:
Discoball: Dots appear randomly across the screen.
Pulse generates temporarily mode flashing leds.
Snowflake: Randomly generated images appear on screen.
Pulse generates a new image.
Lightspeed: Like being in a spaceship, watching stars fly past.
Lighting dots appear from the center and move toward the edges.
Pulse generates new dot
Random Animations: Six different animations cycle through.
Pulse triggers a new animation.
Half Circles: A half-circle appears and rotates.
Pulse creates a new half circle.
Circles: A circle appears and fades away.
Pulse generates a new circle.
Molecule: A dot moves continuously around the screen.
Pulse changes its trajectory.
Dots and dont's: Sometimes there is dot and sometimes there is not
Pulse generates new sequence
Impulse: A filled circle flashes on screen and disappears.
Pulse creates a new one.
Paranka: A multicolor wheel fills the screen.
Color options adjust how quickly the colors change.
changes the color
Goa: The screen explodes with wild, shifting colors.
Color options adjust the speed of the changes.
changes the color
Specifications:
Module height: 3U
Module width: 16 HP (80 mm)
Screen diameter: 70 mm
Presets: 11
Color options: 8 (each preset slightly different)
Sync pulse: rising edge 5v
max PPM: 150 (reading time around 170ms, can skip shorter pulses)
Sync input is directly connected to output
Connector: IDC 10-pin Eurorack standard
Input voltage: 12v
Operating voltage: 5v
Onboard regulator steps down 12v to 5v
Power consumption:
To drive all those LEDs, this module uses more power than typical Eurorack modules:
Min brightness, minimum LEDs: 40 mA @ +12v
Max brightness, maximum LEDs: 450 mA @ +12v
Typical use: In a regular room with no sunlight, using a preset that lights ~10 LEDs consumes around 60 mA.
Please use with caution!
It is possible to adjust the LEDs from very dim to very bright.
Maximum brightness is intended only for use in daylight or in a room filled with sunlight.
Watching it in a dark room may cause eye strain or discomfort.
This is a visualizer only!
It does not produce or process audio in any way.
