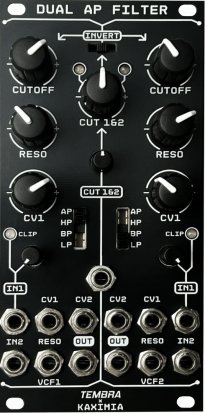

DUAL AP FILTER

DUAL All Pass Filter with input "buzz"

1. CUTOFF FREQUENCY CONTROLS
   CUTOFF: manual cutoff control
   CV1: attenuated control voltage input for cutoff control
   CV2: cutoff control voltage input

2. CUT 1&2
   Manual CUTOFF control for both filters with attenuated CV input and slider switch for affect inversion

3. RESO (RESONANCE)
   Manual RESONANCE control with CV input
   CV input reacts to 0-5V range

4. MODE slider switch
   Selects in which mode the filter will work:
   LP - low pass | BP - band pass
   HP - high pass | AP - all pass

5. OUTPUTS
   Filters outputs, output of VCF1 normaled to output VCF2 so if in output of VCF1 nothing plugged in, VCF2 output acts as a mixed output of both VCFs

6. FiLTERS INPUTS
   Each filter has 2 audio inputs (IN1 and IN2), on both filters IN1 is attenuated and equipped with a LED clipper to create a “buzz” effect
