Dimensions
6 HP
28 mm deep
Current Draw
45 mA +12V
0 mA -12V
0 mA 5V
Price
$15 Price in €

Module is available as a DIY project only.

This Module is currently available.

a compact DIY multi purpose Module

DOTS: A 6-Channel Eurorack Trigger/Gate Module

DOTS is a compact, 6-channel Eurorack module designed for generating triggers and gates. This open hardware project allows you to build the module yourself, with instructions and resources provided.

Features

  • 6-Channel Trigger/Gate: Generate triggers and gates for your modular system.
  • Compact Size: Only 6hp wide, making it a handy addition to your setup.
  • Sync Capabilities: Includes a clock and reset input, allowing it to function as a master or slave.
  • Visual Feedback: Equipped with a screen and an UI.
  • Multiple Programs: The firmware features multiple programs for different trigger/gate patterns and functionalities.

Modes

  • Step Sequencer: Classic 16-step pattern programming with 8 pattern banks and visual step editing
  • Euclidean Sequencer: Generate complex polyrhythmic patterns using Euclidean algorithms with individual channel control
  • Clock Divider: Individual channel dividers (÷1 to ÷16) for creating polyrhythmic sequences and musical divisions
  • Random Trigger: Probability-based trigger generation with adjustable chance per channel
  • Configuration Menu: Comprehensive settings for BPM, clock modes, output types, and more

Instructions

Check the website for detailed instructions on how to order, build and flash the module.

Resources

  • Website: Main website for the project.
  • Order Guide: Order your DOTS PCB and front panel.
  • Build Guide: Detailed instructions and an interactive Bill of Materials.
  • Installation Guide: Instructions for flashing the firmware to your DOTS module.
  • Manual: Comprehensive manual for using the module.
  • Firmware on GitHub: Download the latest firmware for the module.

Special thanks to HAGIWO for providing foundational knowledge.

Happy Building!

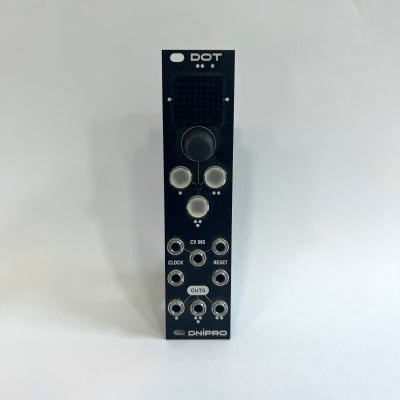

frontside
