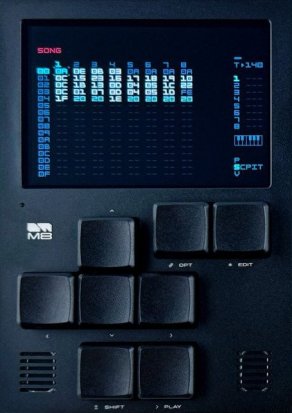

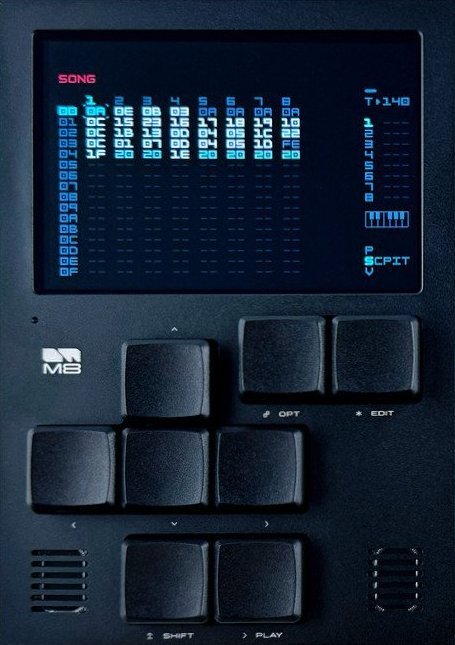

Dirtywave M8 Tracker Model:02

M8 is a portable tracker sequencer and synthesizer. Featuring 8 tracks of freely assignable instruments capable of a wide range of sounds including waveform synthesis, FM, virtual analog, sample playback, and MIDI output.

Sequencer Specifications
* 8 Monophonic Tracks/Voices
* 255 Patterns/Phrases & chains
* 256 Instrument Tables for advanced modulation
* 128 Instruments per song
* Song Arranger with Live mode
* Instantaneous song recall
* Full MIDI input & Output support

Instruments & Effects
* Wavsynth - Classic console & computer chip emulation.
* Macrosynth - Based on Mutable Instruments Braids
* FM - 4 OP 12 algorithm with feedback per operator.
* Sampler - 8/16/24 bit mono and full stereo wav format.
* MIDI Instruments with 10 user definable CCs.
* Global reverb, chorus, delay and a master bus limiter.
* Sample recording and song rendering/bouncing.
* No sample memory or length limitation.

Hardware Specifications
* 3.5mm TRS MIDI (Type A) input and output.
* Stereo audio input and Headphone/main output
* USB MIDI and Audio compliant (Micro-USB)
* SDHC Micro SD slot for storage
* 1200mAh USB rechargeable battery - up to 6 hours use.
* High quality 2.8" IPS display with capacitive touch
* Dimensions: 96mm x 133mm x 18~20mm

With it's dimensions, it can be mounted into a 3U holder. 3D files in progress.

https://dirtywave.com/
