Offer Details

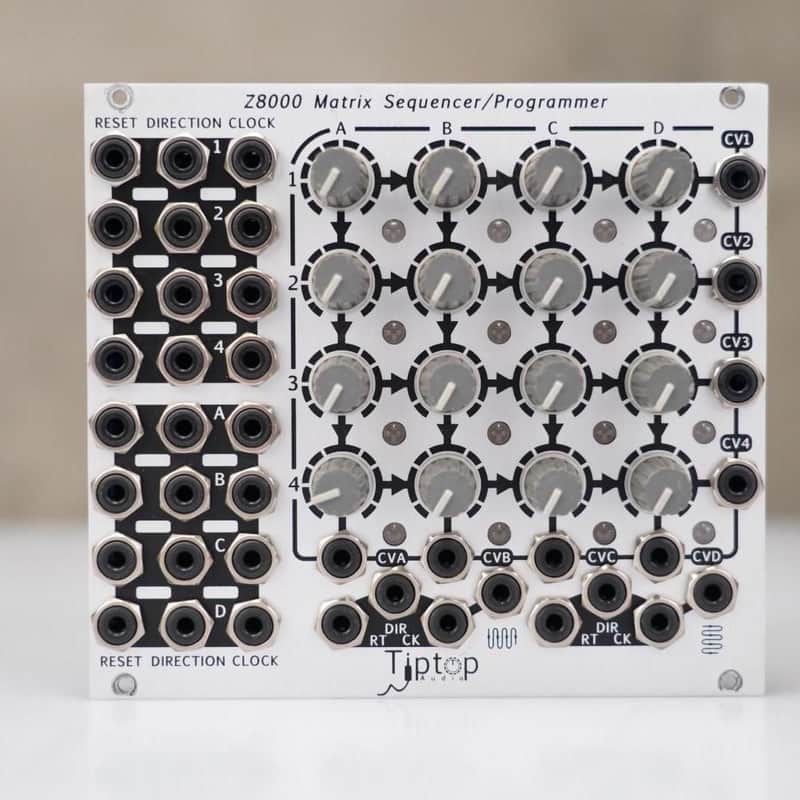

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition. INVENTORY #58503 BRAND: TipTop Audio MODEL:  Z8000 VC Matrix Sequencer Programmer FUNCTION: Eurorack Synthesizer Module PRODUCT DESCRIPTION: This listing is for a TipTop Audio Z8000 VC Matrix Sequencer Programmer Eurorack Synthesizer Module. The Tiptop Audio Z8000 Matrix Sequencer is a high-density Eurorack CV modulation source that uses a grid of 16 knobs to drive ten independent sequencers simultaneously. It is primarily valued for creating complex, polyrhythmic modulations where a single knob adjustment can influence up to 10 different CV parameters. SPECS: The module's unique architecture provides 10 sequencer paths that traverse the 16-knob matrix in various directions. Four 4-step CV sequencers that run horizontally. Four 4-step CV sequencers that run vertically. One 16-step CV sequencer that runs horizontally through the entire grid. One 16-step CV sequencer that runs vertically through the entire grid. Width: 28 HP. Depth: 15 mm (approx. 0.59 inches). Power Requirements: +70mA (+12V) and -10mA (-12V). Connectivity: 30 gate and clock inputs and 10 CV outputs. Voltage Range: The V2 version includes rear-panel switches to set CV output ranges to either 0–5V or 0–10V. ACCESSORIES INCLUDED:   Eurorack Power Cable (4) Eurorack Screws & Washers UNPACKAGED WEIGHT: 1 lbs. UNPACKAGED DIMENSIONS: 5" x 2" x 6"
