Offer Details

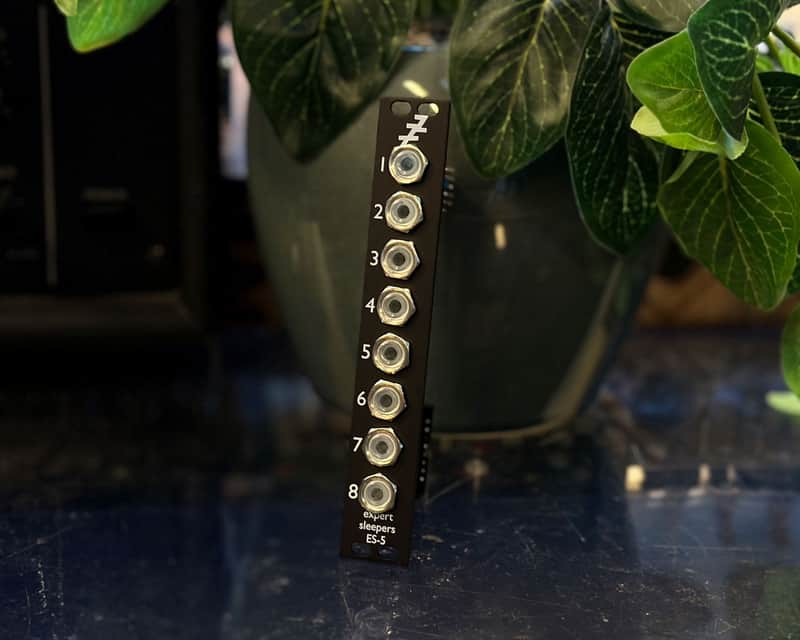

The Expert Sleepers ES-5 is a gate, clock, sync, and MIDI expansion module designed for use with the Expert Sleepers ES-3 Lightpipe/CV Interface. By piggybacking on a single stereo output pair from the ES-3, the ES-5 dramatically expands the number of available digital outputs within an Expert Sleepers modular control system.
The module provides eight independent digital outputs capable of handling gates, triggers, clocks, sync signals, and MIDI transmission directly from compatible software environments. In addition to its own outputs, the ES-5 also functions as a hub for further expansion, supporting up to six additional expansion modules such as the ESX-8GT Gate Expander or ESX-4CV.
This architecture allows a single ES-3 system to scale into a highly flexible modular control environment capable of handling large numbers of gates, clocks, drum triggers, sequencer signals, MIDI outputs, and CV expansion duties from a DAW or software sequencer.
The ES-5 integrates particularly well with Silent Way, Max/MSP, Ableton Live, Bitwig Studio, VCV Rack, and other software environments capable of routing digital control data through the ES-3 platform.
Features

Expansion module for the Expert Sleepers ES-3
Provides eight digital gate/clock/sync/MIDI outputs
Uses one stereo channel pair from the ES-3
DC-coupled outputs
LED indicator per channel
Supports further system expansion via onboard headers
Compatible with:
ESX-8GT Gate Expander
ESX-4CV
Additional Expert Sleepers expansion modules
Suitable for clocks, triggers, gates, sync, and MIDI transmission
Integrates tightly with DAW-based modular control systems

Connectivity
Digital Input

Connection from ES-3 module

Outputs

8 × 3.5mm DC-coupled outputs
Output voltage:
0V / 5V

Expansion
The ES-5 includes six expansion headers for connecting additional modules such as:

Expert Sleepers ESX-8GT
Expert Sleepers ESX-4CV
Other compatible Expert Sleepers expanders

Designed For

DAW-controlled modular systems
Clock and trigger generation
Modular drum sequencing
MIDI-to-modular workflows
Silent Way systems
Expanded ES-3 routing setups
Hybrid Eurorack/software environments

• 4 HP 49 mm deep
Expander External MIDI Digital
Includes ribbon cable.
