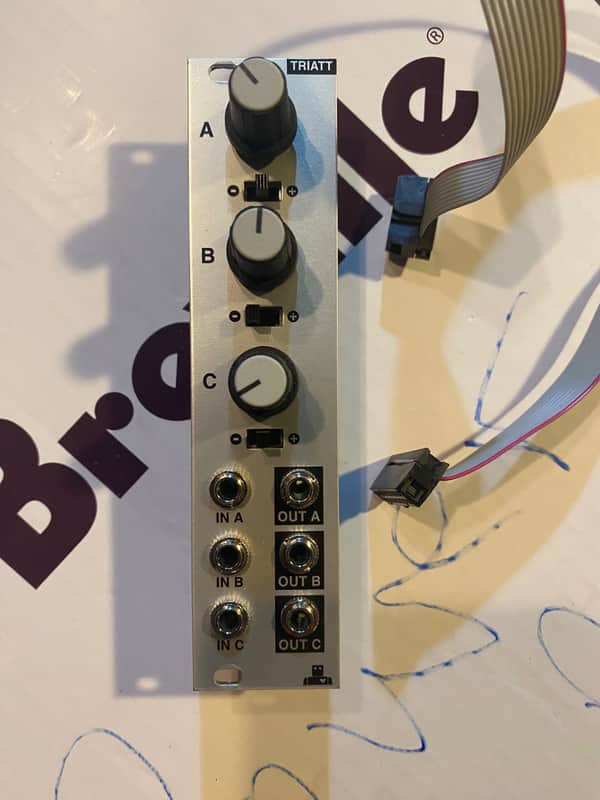

INTELLIJEL TRIATT EURORACK TRIPLE ATTENUATOR/ATTENUVERTERThis Intellijel Triatt is essentially new and unused.  It is a 6HP, 3-channel utility module designed for attenuating, inverting, and mixing signals (both CV and audio). This original version is characterized by its three Channels with each selectively acting as an attenuator, inverter, or attenuverter. Each channel has a switch to select between modes (Unipolar/Positive, Bipolar/Attenuverter, and Inverting Attenuator). When no cable is plugged into an input, the channel acts as a DC voltage source (0 to +5V or -5V to +5V, depending on the switch setting). The outputs are normalled to mix into the channel below, allowing the bottom output to act as a master mix of all three channels. The rear of the module has jumpers that allow you to change the internal normalization from 5V to 10V. The Triatt is sought after for its unique 3-position switch per channel: Right: Regular attenuator; Middle: Bipolar Attenuverter; and Left: Inverting attenuator. 6 HP Width. 24mm Depth. Current Draw: 16 mA @ +12V, 14 mA @ -12V.SHIPPING WITHIN THE CONTINENTAL U.S. ONLY
