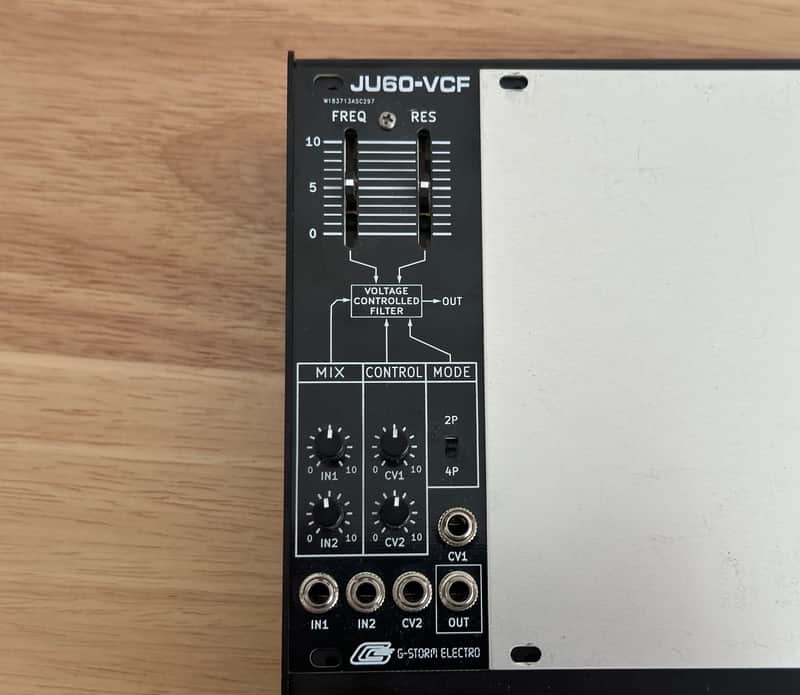

MintJU60-VCF is an analog 4-pole low pass filter adaptation of Roland Juno-6/60 using a vintage IR3109 chip with a BA662 OTA chip in the resonance feedback loop.  This topology was also used on the Jupiter-8, with a switch for tapping the 2-pole mode.  Resonance will self-oscillate and produces a nice sine wave alone.  JU60-VCF won’t turn your system into a polyphonic synth, but it has a classic sound at a sweet price.FREQUENCY | the initial Cutoff Frequency of the filterRESONANCE | the depth of the peak frequency resonant feedbackIN1 & IN2 | Mix together 2 different audio signals, each w/ their own mix pot.CV1 & CV2 | Modulate the Cutoff Frequency w/ any polar/bi-polar mod source. MODE | Select between lowpass 2-pole or 4-pole operation.OUT | the audio output jack of the filterINCLUDED | 10-pin to 16-pin Eurorack ribbon connectorSPECS8HP Module width24 mm Module depth25 mA on +12V25 mA on -12V0ma on 5V (not used)JU60-VCF pairs well with:GSE 2xVCA101-VCO r2 (coming in 2023)Feedback Modules 106-Chorus
