Offer Details

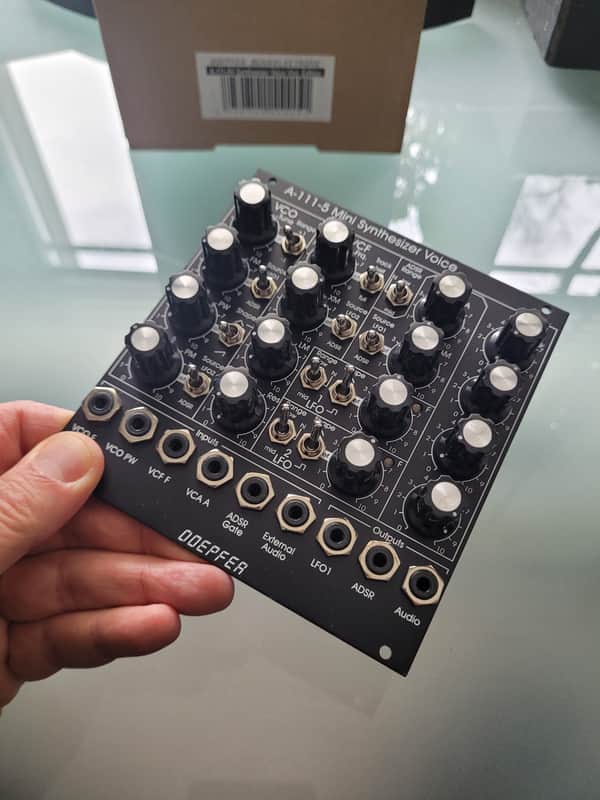

Rarely used, 3momths old, mint condition, with original packagingDoepfer A-111-5V Mini Synth Voice (Vintage Edition).Module A-111-5 is a complete monophonic synthesizer module that includes these components:VCOmanual tune control (with an internal jumper the range can be set to ~ +/-1 half an octave or ~ +/-2.5 octaves)range switch -1 / 0 / +1 octavefrequency range about 10Hz ... 12kHzFM (frequency modulation) control with modulation source switch (LFO1 / off / ADSR)manual pulsewidth control for rectangle waveformPWM control with modulation source switch (LFO2 / off / ADSR)waveform switch (sawtooth / off / triangle)the sum of the waveform chosen by this switch and the rectangle is fed into the VCF (to turn the rectangle off the PW control has to be set fully CCW)external CV input for VCO frequency (1V/octave)external CV input for external PWM of the rectangleinternal CV input for frequency (1V/octave) connected to the A-100 bus via jumper, the jumper can be used to interrupt this internal connection if not wanted
