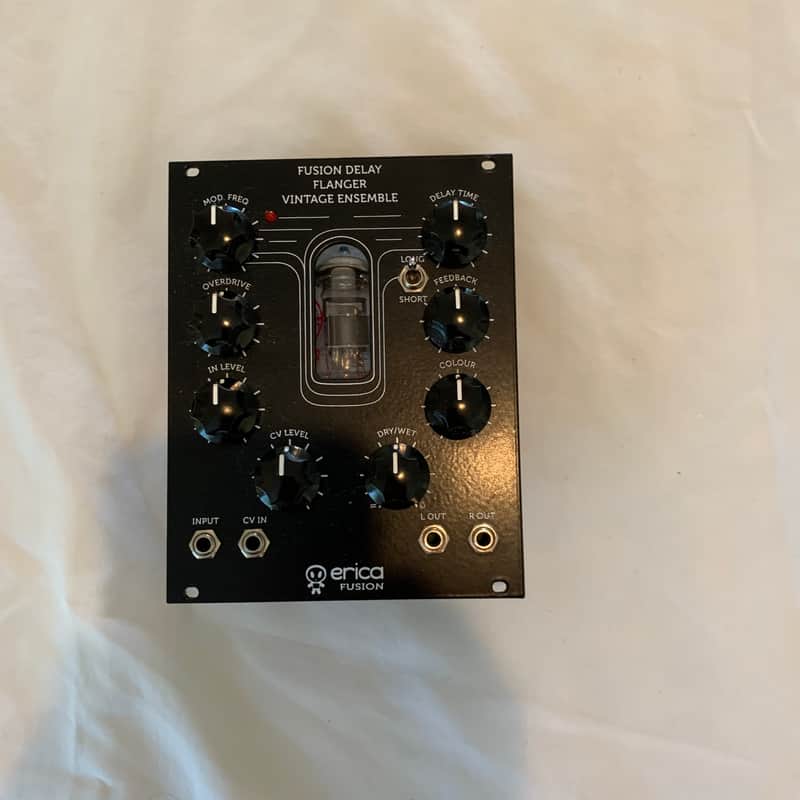

This sale is for the module only, it does not include the original box and/or cables.BBD based multifunctional analogue effects module.Product DescriptionErica Synths Fusion Delay/Flanger/Vintage Ensemble module is a distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and a feedback path for extra thickness of the sound.For more flexibility lowpass filtering is fully adjustable from none to extreme. A special feature, not found in eurorack, is the Vintage Stereo Ensemble – an effect that’s common on vintage synthesizers to create a moving and thick spatial sound from a monaural tone generator, be it FM, DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal.All Fusion modules by default are configured to work with regular eurorack PSU.Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection turn off the power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.Technical specifications:Audio input signal level: up to 20V ptpMax delay time SHORT setting: 20msMax delay time LONG setting: 200msLFO range: 0.1Hz – 30HzPower supply: bipolar +-12V , eurorack standardPower consumption: Eurorack PSU configuration: 35mA@+12V, 170mA@-12V (NB – start-up power consuption for few seconds is -250mA)Module width: 20HPModule depth: 35mm
