Offer Details

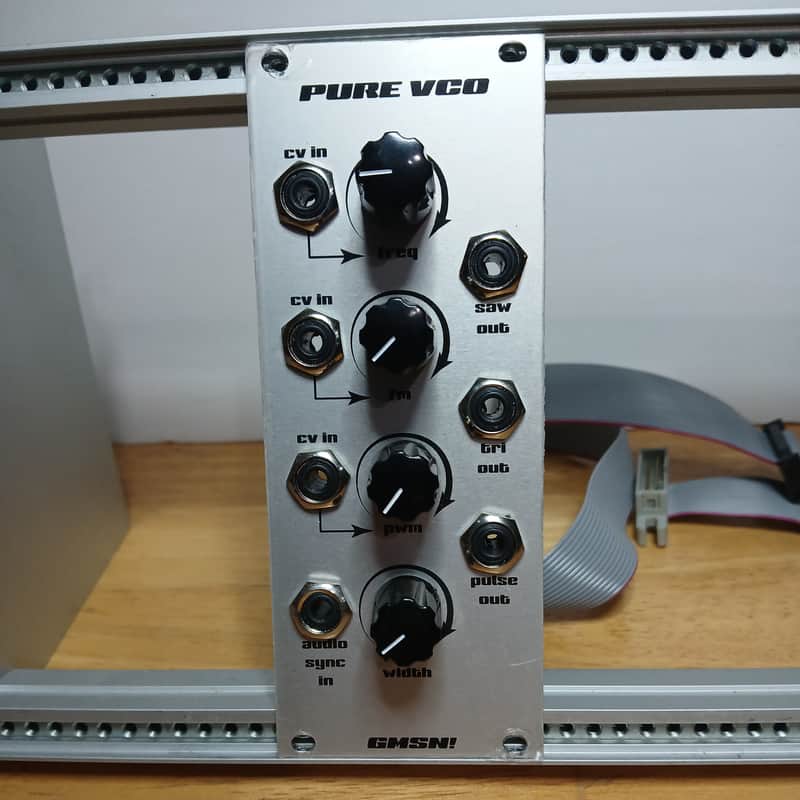

Built from kit. Sounds fantastic. Barely used. Still has protective plastic on panel. PCB is the long version, if using a desktop TIPTOP, it must be used in the more upright position, or board hits table. All other units should be fine.Comes with ribbon cable.Pure VCO is a classic analogue sound source. It has saw, triangle and pulse outs, with coarse and fine control of the frequency.The GMSN! Pure VCO is a classic analogue sound source. It has saw, triangle and pulse outs, with coarse and fine control of the frequency across the whole audio range right down to LFO frequencies. The pulse width can be set from 0 – 100% with 50% being square wave out. There is also 1 volt per octave CV In, FM In with control of the level, PWM in, again with control of the level and an Audio Sync In.For more info on audio and control voltages, check out the Modular Synth Primer.Module Specifications:Frequency Range: 12Hz - 56kHzOutput Voltage: -5V - + 5VWidth: 12HPDepth: 22mmPower: 41mA +12v; 40mA -12v
