CVGT1

Description

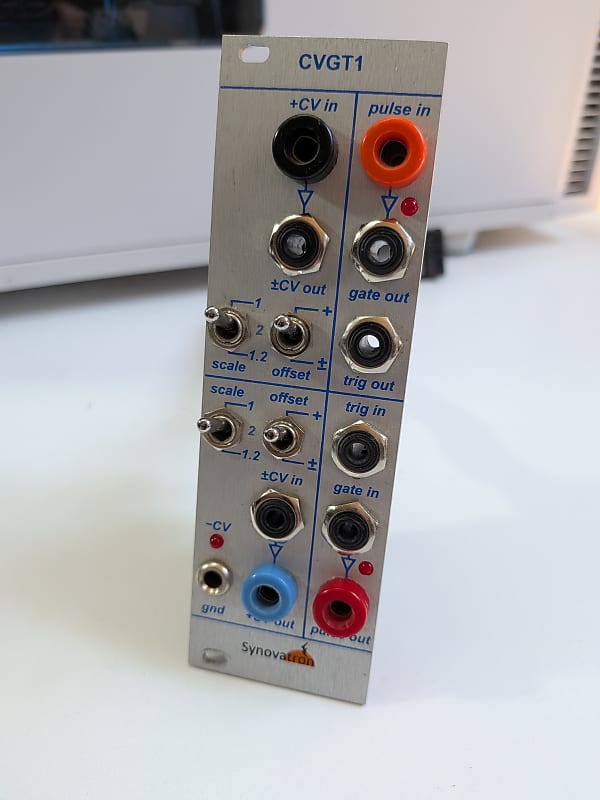

Synovatron CVGT1 – Eurorack ⇄ Buchla CV/Gate/Trigger Translator (8HP)Condition: Excellent. Barely used, has been stored safely for several years. Includes original ribbon cable.Description: The Synovatron CVGT1 is designed to seamlessly integrate Eurorack systems with Buchla (or other banana-socketed synths such as Serge or Bugbrand). Unlike a simple format jumbler, it provides proper signal conversion circuitry for both control voltages and timing signals.Bidirectional CV translation with selectable scaling (1 V/Oct, 1.2 V/Oct, 2 V/Oct).Offset switching to match Eurorack’s bipolar ±10 V range with Buchla’s unipolar 0–10 V.Timing conversion: Eurorack gates/triggers/clocks to Buchla pulses, and vice versa.LED indicators and comparator inputs ensure reliable operation with a variety of signal shapes.Banana GND jack for proper system grounding between formats.Specifications:Width: 8HP (40.3 mm)Depth: 33 mm (46 mm at ribbon connector)Power: +12 V @ 20 mA max, −12 V @ 10 mA max (no +5 V required)Notes: I no longer have a Eurorack or Buchla system to test this with, but it was working when last used and has been stored in excellent condition since.Shipping: Ships well-packed and protected. Please contact me for a more specific shipping quote as the rates on this listing are likely higher than actual.
