Z4000 VC-EG

Tiptop Audio Offer Details

Created
Modified
Price
$181.00
Seller

Region
Canada

Voltage Controlled Envelope Generator

http://tiptopaudio.com/z4000/

  • 34 mA +12V
  • 18 mA -12V
  • 28 mm Depth
Go to the Module Detail Page

Used Price History

If you had an Unicorn Account you could see a chart with the price development of this module and the average price asked for this module.

About the Unicorn Account

Description

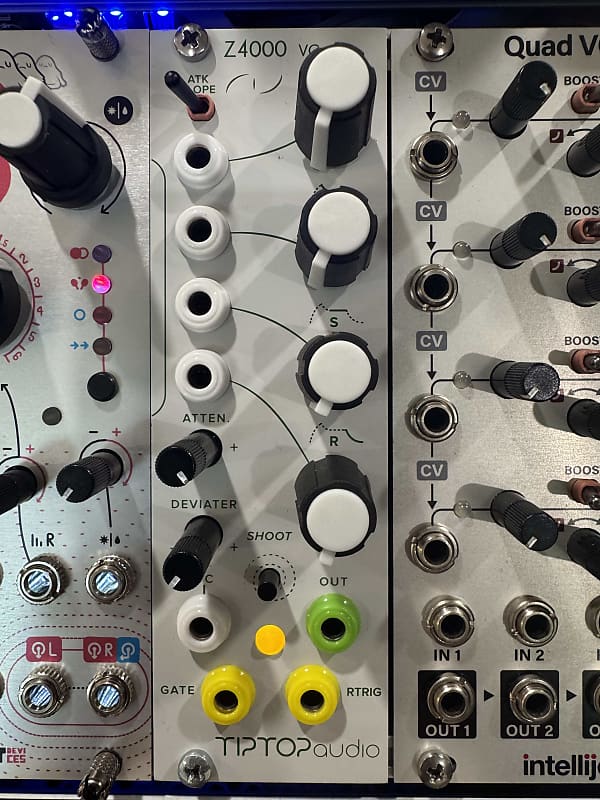

The Z4000 NS is a snappy voltage-controlled analog envelope generator with a built-in CV processor for scaling, inverting, and voltage-controlled deviating of the envelope shape. The Z4000 generates an envelope made of the four classic segments: Attack, Decay, Sustain and Release, in which each segment can be manually set using knobs or dynamically set under voltage control.Control knobs for the Attack, Decay, and Release segments are scaled. The first 0-50% of the knobs rotation is dedicated to high resolution adjustment in the millisecond range.The output levels are fully adjustable with signals that can reach up to 10V in either polarity and can be mirrored into the opposite polarity or clipped using the voltage-controlled deviater-scaler. A bi-color LED indicates intermediate values in both polarities and their crossfade state.

Tiptop Audio Z4000 VC-EG
