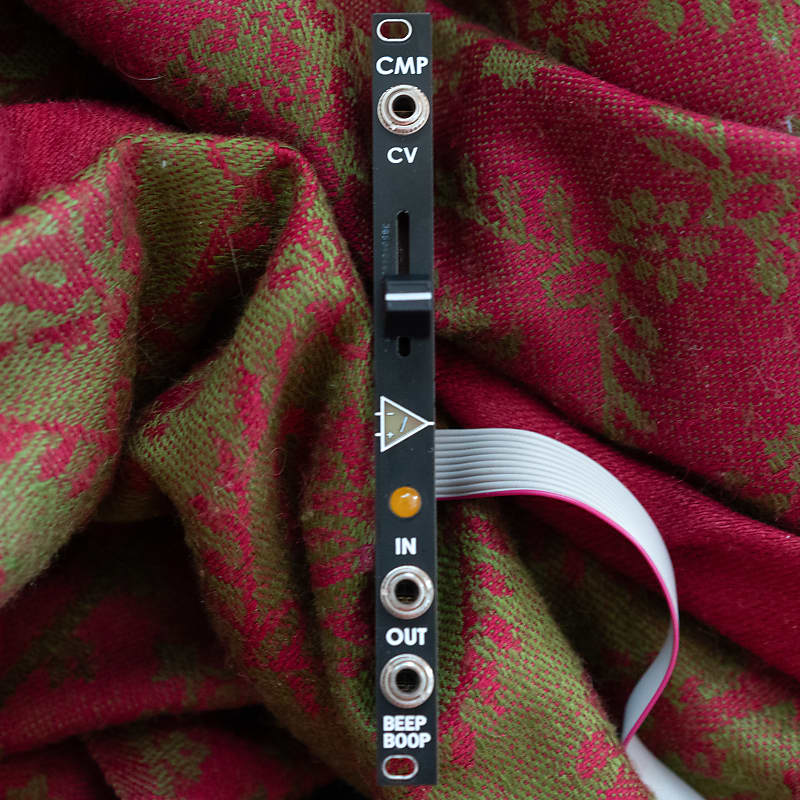

2hp Comparator module
https://beepboopelectronics.co.uk/product/2hp-cmp-comparator-v2/
If you had an Unicorn Account you could see a chart with the price development of this module and the average price asked for this module.
The 2hp Comparator makes it possible to generate gates and triggers from signals in your eurorack system. The theory behind a comparator is that it has two inputs and an output. The output goes high when the signal level of one input exceeds the other.To patch the module feed any signal into the input. Patch the output to any module that reacts to gates and triggers, for example an envelope generator. Then adjust the offset slider.The input signal will be compared with the built in offset producing a gate at the output.The output gate will stay high as long as the input signal level in higher than the threshold voltage.The threshold level is set controlled using the slide control and CV signal. The internal offset ranges between -5V and +5V.Using two LFOs patched to the input and CV control will produce gate and trigger patterns depending upon the relationship between their levels but also shape and frequencies.At audio rates the module will produce a pulse wave with a width dependent upon the shape of the input signal. A increasing the threshold usingCreate PWM type effects by feeding in an oscillator to the input and another oscillator to the CV input new waveforms can be generated.Includes power cable
