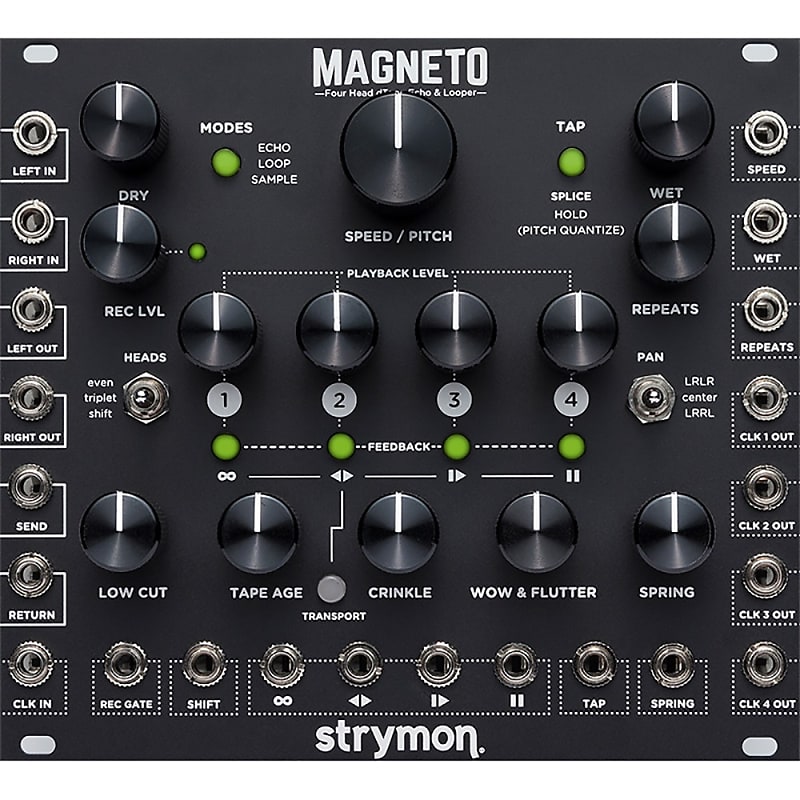

Stereo multi-head tape delay emulation, looper, phrase sampler, reverb, clock multiplier, chaotic oscillator
https://www.strymon.net/products/magneto/
If you had an Unicorn Account you could see a chart with the price development of this module and the average price asked for this module.
Customer Return, may show signs of wear.
Sound Design
Tape-voiced delay machine with four playback heads and one record head
Processor-intense dTape algorithm delivers meticulously nuanced recreations of vintage tape echo systems
Three operational modes: Echo, Sound On Sound Looper, Phrase Sampler
Varispeed algorithm with dynamic machine mechanics, 8:1 speed range
Input record level for clean reproduction to warm, fat saturation
Self-oscillating for tone generation
Independent Spring Reverb
Control
Dedicated control over tape mechanics, machine health, and tone: Low Cut, Tape Age, Crinkle, Wow & Flutter
Transport controls (buttons and CV inputs) for real-time performance options
Individual Playback Head Level controls
Individual head Feedback assignment independent of playback level
Three stereo head panning options, including user-defined custom panning
Phase aligned clock out (CLK OUT) CVs synched with clock in (CLK IN) CV
Ranges
Maximum Delay/Loop Time: 15 seconds at maximum Speed, two minutes at minimum Speed
Minimum Delay Time: 200µS at maximum speed
Clock In CV Range: 50ms – 15s
TAP Button Range: 50ms – 15s
TAP CV Range: 10ms – 15s
Audio Quality
Analog dry path for a zero latency dry signal that is never converted to digital
Super high performance SHARC DSP
114db typical signal to noise
Sampling Rate: 96kHz
Audio Input Impedance: 22 kOhm
Maximum Audio Input Level: 20 Vpp
Audio Output Impedance: 1 kOhm
Maximum Audio Output Level: 20 Vpp
Power
+12V rail: 210mA
-12V rail: 210mA
+5V rail: 0mA
Eurorack power cable included
Dimensions
Rack Width: 28hp
Rack Depth: 41mm, 1.61”
Designed & Built in the USA
Manufacturer's Description
Packed with powerful features while maintaining intuitive playability, Magneto is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.
Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.
To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.
Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.
Features
Tape Saturation
Self-Oscillator
Pitch Shifted Delays
Spring Reverb
Looper
Phrase Sampler
Infinite Echo
Reverse
Clock Multiplier/Divider
Tape Stop/Start
Audio Scrubber
Stereo Operation
