Filter 8

Description

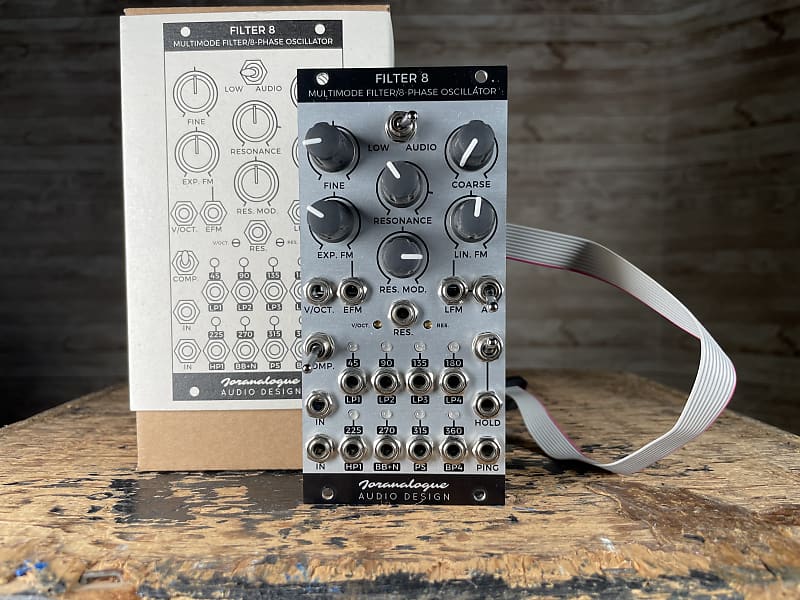

Very powerful VCF / LPF / VCO unit with a ton of simultaneous outputs. Too many options to summarize. In excellent condition with original box.12hp x 43mm(Consignment)Manufacturer Info:Representing the cutting edge in modular analogue voltage controlled filter (VCF) design, Filter 8 offers more possibilities and higher fidelity in 12 HP than ever before.Starting from the classic OTA-style 4-pole cascaded lowpass (LP) topology, Filter 8 features separate LP outputs, each with their own character. Additional filter responses are achieved by pole mixing: 1-pole highpass, a special band boost and notch response, phase shifter and 4-pole bandpass. All outputs are available simultaneously.Key to Filter 8's performance is the innovative resonant feedback circuit. By increasing the resonance, all outputs will resonate at the filter frequency, without any low frequency response loss. At higher resonance levels, self-oscillation is achieved, turning the module into an excellent 8-phase sine wave voltage controlled oscillator (VCO) with temperature and switchable gain compensation, low distortion, constant amplitude and accurate frequency tracking over at least 5 octaves. At sub-audio frequencies, Filter 8 can function as an 8-output voltage controlled slew modifier or 8-phase low frequency oscillator (LFO).Simultaneous exponential and linear frequency modulation is possible, for classic FM tones or chaotic modulation. A hold feature is also provided, 'freezing' the output voltages manually or under gate control. This is useful for halting modulations, or as a sync-like effect at audio frequencies. The dedicated ‘ping’ input allows you to easily create crisp percussive sounds with different timbres.While rooted in the legacy of classic synthesisers, Filter 8 provides a new approach to musical signal generators and modifiers: instead of simply a VCF, VCO, slew modifier or VCLFO, a single analogue module can now be any of those, and anything in between.Width: 12HPDepth: 43mmPower: 75mA @ +12V / 75mA @ -12V------ Shop Policies - Please Read -**If you are located in the PST time zone, please message to confirm shipping ratesPlease ask any questions regarding condition, payment, shipping or other details PRIOR to making an offer.Absolutely no returns on any items unless they are not as described.Please view the photos carefully for details of the items’ condition, and don’t hesitate to ask questions.Guitars are set up and playing well in-store, and packed as thoroughly as possible to minimize any change to that. Sometimes the playability is affected by shipping time and conditions, and may require minor maintenance (setup, etc) upon arrival. Please anticipate this.We pack all of our items very carefully and take pictures documenting the shipment process, to protect the buyer and seller in case of any issues.Any issues with received items must be reported to Cask Music within 48 hours. We will work hard to resolve any problems with your item as respectfully and responsibly as possible.We are located in Toronto, Canada. Cross-border shipping may incur fees for brokerage and customs. As per Reverb’s policies, these are ALWAYS the responsibility of the buyer.When economically possible, we will favour faster shipping options to minimize the amount of time items are in transit. For some more valuable or delicate items, the faster option will be required.

This offer was fetched from reverb.com. You cannot contact the seller via ModularGrid. You have to visit their site.
