Meander

Low Frequency Oscillator

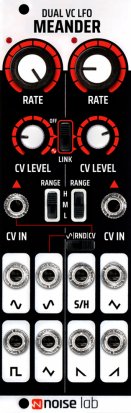

MEANDER features two independent analog voltage-controlled LFO's (Low-Frequency Oscillators) providing 8 distinct outputs of waveforms (specified below), making it a highly versatile modulation source for your Eurorack system. By cross-patching the two LFO's, you can generate intricate CV contours to modulate other modules with precision and creativity. Two inputs for external control of their frequency rates.

Waveforms
LFO 1 - Sine, inverted sine, square, triangle.
LFO 2 - S/H/random, triangle, sawtooth, ramp.

A link switch let you configure LFO 2 to follow either the sine wave of LFO 1 or its CV input.

Three modes of the sample & hold circuit
1. Sample the sine wave of LFO 1.
2. Use the built-in noise source to generate a classic random CV pattern.
3. Sample the CV input of LFO 1.

The rate of LFO 2 determines how frequently a CV value is sampled and held.

MEANDER provides three settings, with the following approximate frequency ranges:

HIGH - 0.038 Hz (26 sec) to 270Hz
MEDIUM - 0.025 Hz (40 sec) to 90Hz
LOW - 0.00379 Hz (4.4 min) to 22Hz
