Dimensions
16 HP
50 mm deep
Current Draw
90 mA +12V
20 mA -12V
? mA 5V
Price
$333 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

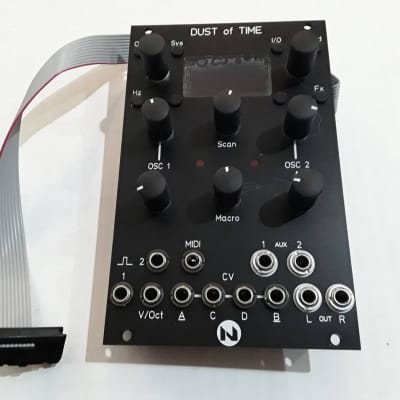

Dual stereo oscillator with modulators

This is a dual stereo oscillator with built in modulators and utilities based on a teensy 3.6 micro controller.

Each of the 2 oscillator pairs have a few different methods, each with separate tuning, pitch modulation, and 2 parameters that can be adjusted and modulated with stereo offset or inversion of the modulation. Some OSC modes are procedurally generated, some are wavetables, and it can play waveedit files from the SD card. some methods are oversampled, some are interpolated, some are raw. as of version 0.9.9C there is a new type of oscillator called "BLiXY"

All modulators are at full 44.1KHz sample rate except chaos, which is at 1KHz
there are 4 DAHDSR with looping modulation and virus style slope sustain.
4 (re-settable to actual degrees) LFO which can go from about 17 hours to 999.999Hz (now can synth with BPM)
2 chaos attractors each with x and y outs (16 types of chaos available)
2 fusers, which take 1-3 modulators and mix, multiply or otherwise combine them.
a sub oscillator
2. "control" modulators, any of the pots, midi velocity, mod or bend, can be selected.

4 CV ins and V/Oct in are available as mod sources anywhere, The CV sample rate is high enough for intelligible audio,
(not hi fi by any means!)

2 gate/trigger ins, MIDI gate, and 2 internally generated gates are combined in a matrix to 4 gate/trigger buses.

2 aux CV outs, can be any of the mod sources or t/g buses.

here are some demos, and tracks by other wigglers.

https://michigansynthworks.com/collections/euromodules-test/products/dust-of-time-dual-stereo-oscillator

https://github.com/jakplugg/Neutron-Sound-Dust-of-Time
