Dimensions
12 HP
14 mm deep

Module is a 1U tile in Intellijel format

Current Draw
Module does not draw current
Price
$22 Price in €

This Module is currently available.

Specs are approved by the manufacturer

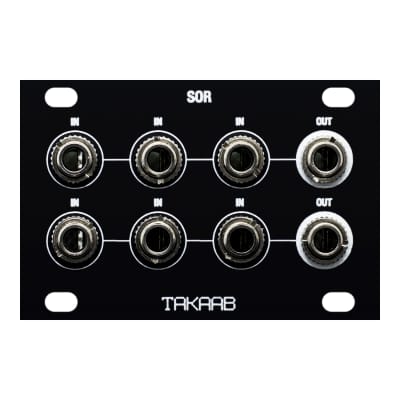

Switched Passive Logic OR Gate

Part of the Takaab range of modules by Siam Modular.

A simple logic OR gate for use combining clock and/or gate signals. The signal path is normalised to act as a single 6-input gate or two separate gates with 3 inputs. As it is passive there is a small voltage drop.

Intellijel format 1U tile
Size: (1U x 12HP) 60.9mm x 39.6mm x 18mm.
Module depth: 1.4cm.
Package contents: 1x module, 4x M3 screws.
