Dimensions
8 HP
25 mm deep
Current Draw
35 mA +12V
35 mA -12V
0 mA 5V
Price
$199 Price in €

This Module is discontinued.

Specs are approved by the manufacturer

Liquid filter

IT FILTERS

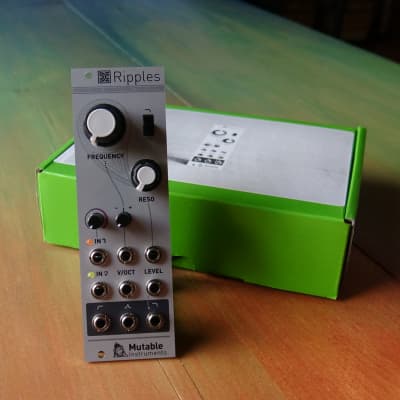

Ripples is a classic, big-sounding analog four-pole filter in a small 8-HP package. Over the years it has earned its reputation as a no-fuss, elegant choice.

Ripples has two input paths: one with a drive control, allowing the signal to be distorted (or providing enough gain for the processing of line-level signals), and the other totally transparent, preserving Ripples mkI’s clean-sounding character.

Three filter modes are available: high-pass, band-pass, and low-pass. The slope (2 or 4 poles) of the band-pass and low-pass outputs is switchable.

Self-oscillation is available for all modes and produces a clean sine-wave on the low-pass output. Unlike many classic 4-pole designs, this filter does not suffer from “loudness drop” when resonance is increased. The resonance loudness compensation circuit brings a slight tone coloration reminiscent of Japanese classics from the 80s, with a very round and liquid resonance.

The low-pass output goes through an internal VCA. This makes Ripples a good final stage module for an inexpensive, or space-constrained, subtractive synthesis synth voice.

A multimode filter

  • High-pass, band-pass, and low-pass outputs.
  • Switchable slope control for the band-pass and low-pass outputs. The slope of the high-pass output varies with resonance.
  • The low-pass output goes through an internal VCA - the perfect “end of subtractive chain” output!

All the CV inputs you need

  • Un-attenuated frequency CV, calibrated for 1V/Oct tracking of the self-oscillation tone over 4 octaves.
  • Frequency CV with attenuverter.
  • Resonance CV. Self oscillation starts at 4V. Control voltages above 5V are non-linearly compressed, for fine control of resonance overdrive.
  • VCA level for the low-pass output.

Specifications

  • Cutoff knob range: 20Hz to 20kHz.
  • Fully analog, based on the V2164 low noise/distortion quad VCA chip, and LM13700 OTA for that extra bit of non-linearity.
  • Frequency CV inputs impedance: 100k.
  • Audio input impedance: 100k.
  • Resonance input impedance: 22k.
  • VCA level input impedance: 39k.
  • All CV inputs handle audio-rate modulations.
