This Module is currently available.
Stereo Processor/Classic Sampler Filter

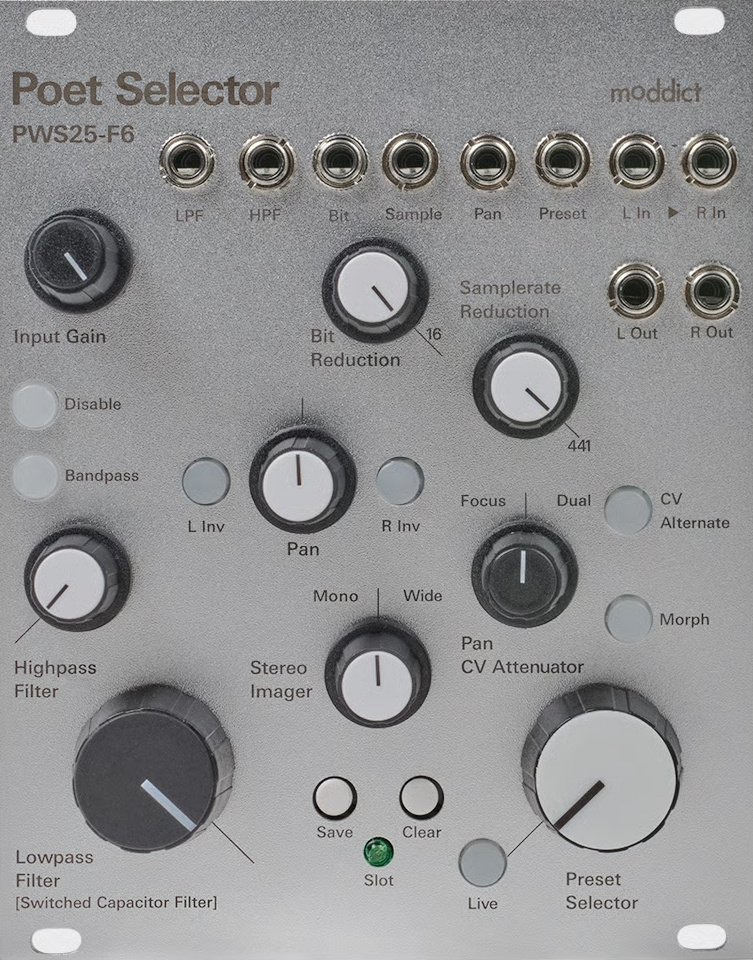

Poet Selector [PWS25-F6] is a digital-analog hybrid module combining a stereo utility, bit crusher, digital high-pass/band-pass section, and an analog switched-capacitor filter from the Akai S612.
The digital section features an intuitive preset selector that allows morphing and crossfading between parameters.
Pan
Provides stereo panning for stereo input. Includes a “gentle margin” so it’s easy to return near center without being too strict.
Pan CV Attenuator
Attenuator for ±5V Pan CV. Turn toward Focus to apply to the current state, or toward Dual to also send Pan CV to the next preset.
CV Alternate
When enabled, in Dual mode it inverts the Pan CV sent to the next preset.
Used between panel states or presets, this enables ping-pong panning.
Stereo Imager
M/S-based stereo imager. Turning toward Mono collapses to mono; turning toward Wide expands stereo width.
Morphing presets can create striking textures. Includes a center “gentle margin.”
L/R Invert
Flips left/right channels when enabled. Combining this with Pan or Stereo Imager in presets can produce unique spatial textures.
Bit Reduction
Reduces bit depth from 16 down to 4 bits.
The effect applies gradually from quieter signals upward—fine-tune via Input Gain.
Turning right→left lowers bit depth; includes a “gentle margin” near full right to avoid unwanted crushing.
Accepts ±5V CV, with higher voltage reducing bit depth.
Sample Rate Reduction
Lowers sample rate from 44.1kHz down to 400Hz.
Creates bright, gritty tones that can be shaped with an LPF.
Turning right→left lowers the rate; includes a right-side “gentle margin.”
Accepts ±5V CV, higher voltage lowers the rate.
High-Pass Filter
Turning left→right raises cutoff frequency.
Useful for tone shaping or DJ-style performance.
Left-side “gentle margin.”
Accepts ±5V CV, higher voltage raises cutoff.
Band-Pass Filter
Activated with the Bandpass button.
Disable
Bypasses the HP/BP filter.
Useful for instantly toggling the filter effect.
Preset Selector
Up to 8 preset slots can be stored at the selector’s positions.
If no preset is selected or the knob is turned fully left, it enters Live mode (reflects panel state).
The white panel pots and buttons correspond to preset parameters.
When the selector points to a slot, its LED lights up.
Morphing and crossfading are possible between Live and Slot states.
Since the digital section always processes two stereo chains simultaneously, crossfading enables transitions beyond simple morphing (including button states).
Even while in a preset, touching a knob or button linked to the selected slot updates its state.
Accepts ±5V CV.
Save Button
Saves the current settings to the selector’s slot.
Overwrites existing presets when pressed at an occupied slot.
If all 8 slots are filled or saving isn’t possible, the slot LED blinks twice.
Clear Button
When pressed while a slot LED is lit, deletes that preset.
Holding for more than 5 seconds causes the button to blink, clearing all presets.
Morph Button
Enables morphing/crossfading between Live and Slot states.
When disabled, switching happens instantly (“preset flipping”).
(Slight clicks may occur when morphing is off.)
Live Button
Forces the module into Live mode (panel state) anytime.
Press again to return to the preset at the current selector position.
After the digital section, a stereo analog switched-capacitor low-pass filter (from the Akai S612) is installed.
Turning left→right lowers the cutoff.
Fixed resonance within the IC gives it a distinctive tone.
Independent from the preset section, enabling long evolving movements.
Accepts ±5V CV.
Width: 20HP
Depth: 34.5mm
Power: +12V 143mA / −12V 32mA / +5V 0mA
Included: Power cable, four M3 screws
