Dimensions
20 HP
28 mm deep
Current Draw
153 mA +12V
7 mA -12V
0 mA 5V
Price
$600 Price in €

This Module is currently available.

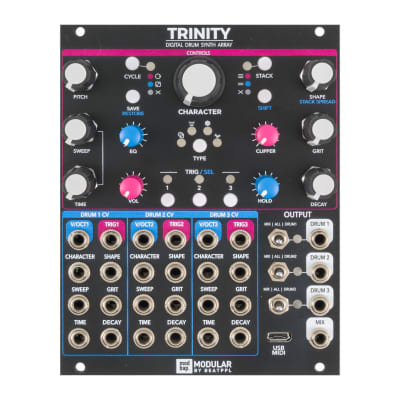

Digital Drum Synth Array

TRINITY is a 3 channel Digital Drum Synth Array packed into a 20hp eurorack synthesizer. Effectively, Trinity performs as 3 powerful drum voices packaged into one beastly drum module with a few tricks up its sleeve.

The name Trinity refers to the 3 drum channels and tips its hat to the core elements of any modern beat driven composition which is typically Kick, Snare and Hat. Trinity takes this simple idea and flips it on its head with 3 channels and an array of drum synth algorithms that use various types of synthesis (Subtractive, Additive, FM & Noise). This allows for a wide range of drum design capability that achieves and reaches far beyond the conventional kick, snare ,and hat.

Trinity’s array of digital drum synth algorithms are very malleable by way of the 7 knobs and 4 mini-pots, each of which control a specific parameter and characteristic (Pitch, Sweep, Time, Shape, Grit, Decay, EQ, Clipper, Hold, Volume and Character) for each drum type. Each drum channel has its own trigger and v/oct in addition to extensive CV input options per channel.

Trinity’s uniquely performable and switchable output matrix allows for the routing of each drum channel’s output to the mix output, the individual drum channel output or both. This makes for easy performability, mutable output, parallel processing, or side chain source.

Lastly, Trinity’s midi over USB connection allows for midi control over various parameters via one usb cable. USB midi makes integration a cinch by connecting one usb wire from Trinity to a groove-box or computer - instant integration

All in all, Trinity packs a hefty punch and weighs in at 20hp, 11 knobs, 3 drum channels, 3 triggers buttons, 4 drum synth algorithms based on 4 different types of synthesis, 24 CV inputs, 3 way output switching with 3 individual outputs, a mix output and a midi over usb connection.

Features
-20hp
-4 drum algorithms - Block (analog inspired), Heap (additive), Neon (fm) & Arcade (noise)
-2 dozen CV inputs
-CV control over all major parameters
-Trigger and pitch conrol over all 3 channels
-3 voice drum polyphony
-Clipping limiter
-Switchable output routing matrix with individual and Mix output
-Stack, Cycle & Random modes
-Midi over micro USB (requires midi host)
-Power: 153mA +12V, 7mA -12V (160mA Peak on Power Up)
