10 HP
24 mm deep
Current Draw
46 mA +12V
0 mA -12V
0 mA 5V
$269 Price in €

This Module is currently available.

Specs are approved by the manufacturer

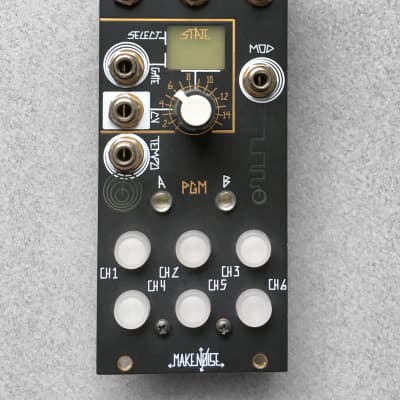

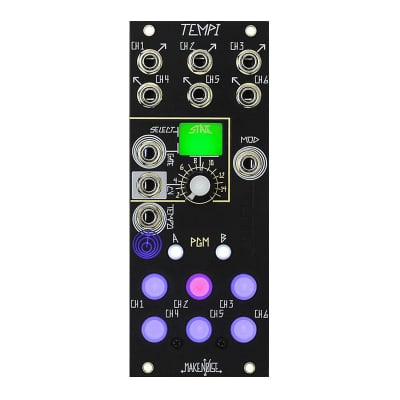

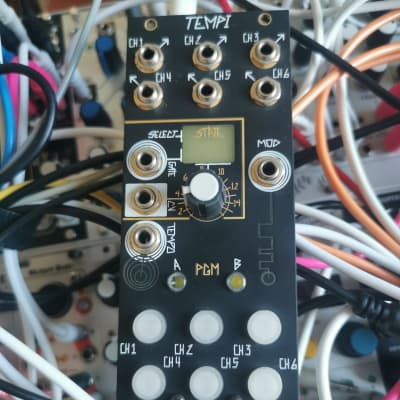

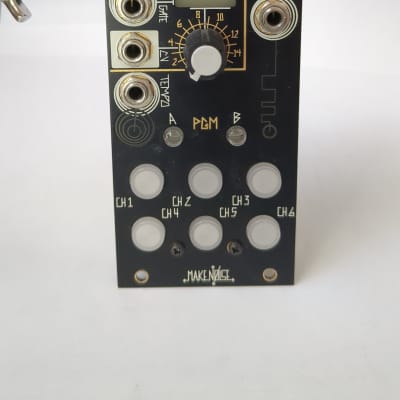

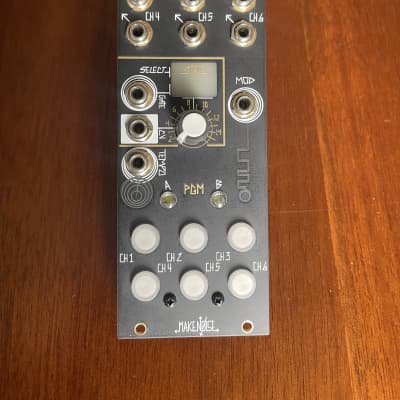

Polyphonic time-shifting module

TEMPI is a 6 Channel, polyphonic time-shifting clock module. It provides an intuitive method for creation and recall of complex clocking arrangements within a modular synthesizer system. Using HUMAN and/ or MACHINE programming you could re-create most classic Clock Divider and Multiplier arrangements and then continue on to create new ones. Store up to 64 for later recall and Select them using control signals from within your system or the Select Bus.


6 simultaneously programmable and patchable clocks

HUMAN programming is fast and intuitive, MACHINE programming provides effortless precision

Program clock Multiplier or Divisor, Phase, MUTE and MOD

Integer and Non-Integer Multiplier, Divisor and Phase remove the shackles of traditional clocking modules

Clock MOD allows for CHannel SHIFTing or RUN/ STOP behaviors

All programming done real-time and able to be Stored as a STATE for later Recall

Stores 64 STATES in 4 Banks of 16

Voltage controlled STATE Selection

External TEMPO IN remembers last STOREd TEMPO

Highly Stable, Low Jitter Clocking algorithm

Maximum artist controlled musical variation, minimum data input
