Dimensions
20 HP
30 mm deep
Current Draw
149 mA +12V
15 mA -12V
0 mA 5V
Price
$489 Price in €

This Module is currently available.

Specs are approved by the manufacturer

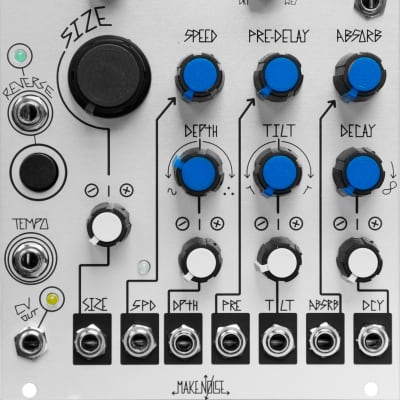

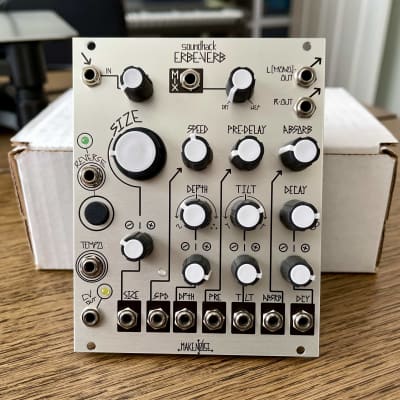

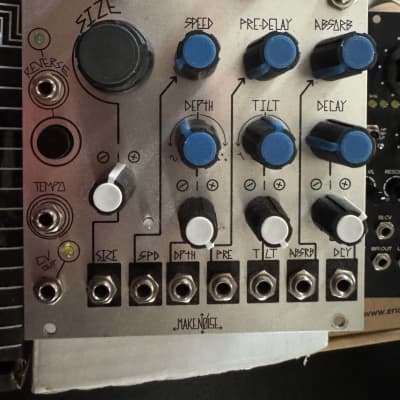

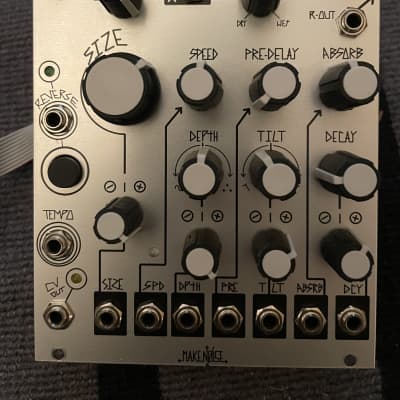

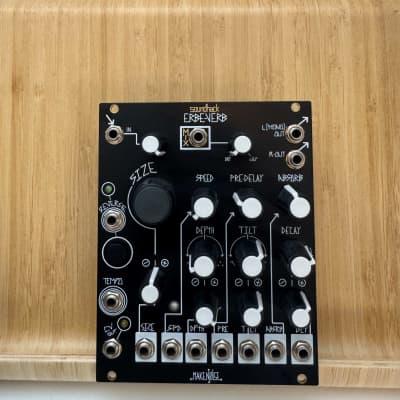

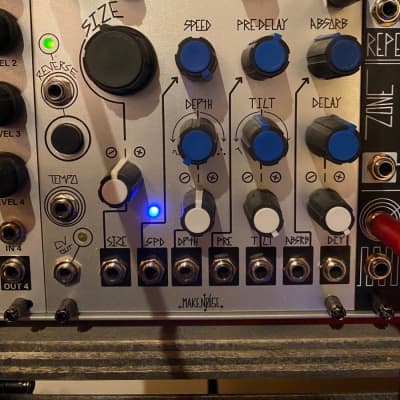

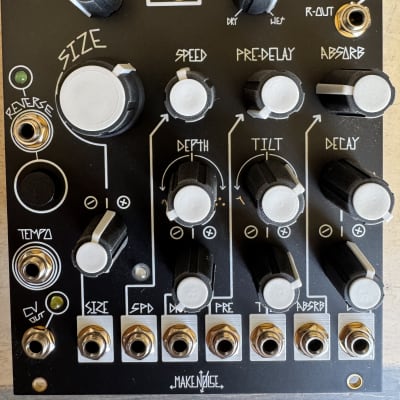

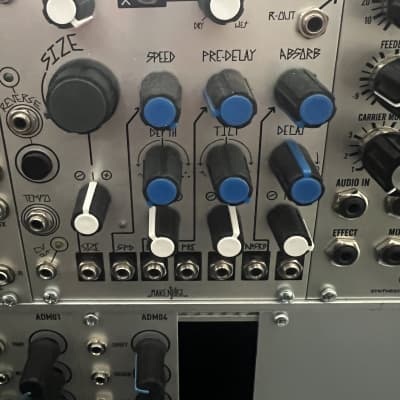

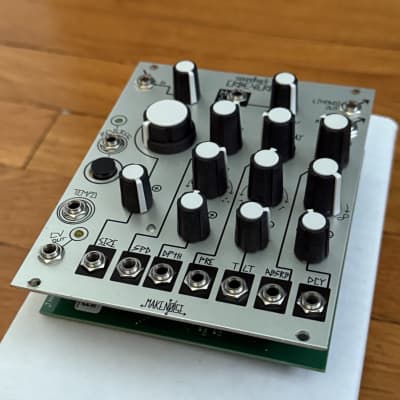

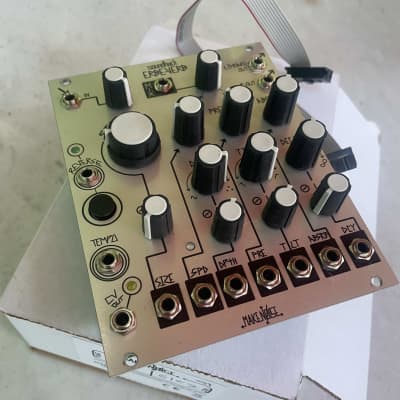

DSP Reverb

The Erbe-Verb is more than a collection of reverb algorithms or presets, it is a unique, modeless, continuously variable reverb algorithm with complete voltage control. Typical reverb types such as plate, room, hall, shimmer and others may be programmed by adjusting the knobs. The continuously variable algorithm allows for hybrid and unreal spaces to be found. Traveling between spaces is possible by modulating the algorithm or manually sweeping parameters. More than an end-of-chain effects unit, it's a whole new building block for modular synthesis. Like the Echophon, it's coded by Tom Erbe of soundhack.

Mono In, Stereo (or Mono) Out, all analog Dry signal path

Size ranges from "coffin" to "the heavens"

Continuously variable Decay settings all the way to infinite feedback

Wide ranging Pre-Delay settings from 7ms - 500ms

Manual or voltage controlled REVERSE reverb

Control over Absorbption, Internal Modulation Depth and Speed allows for programming smooth resonances, chorused doppler effects, shimmer, ghost choirs and more

TILT shapes the tone of the reverb, dramatically emphasizing low or high frequency content

Pre-Delay, Reverse and Internal Modulation all able to be synchronized to external clock via TEMPO input

CV Out completes the conversation between Erbe-Verb and rest of system!

Utilizes High performance DSP hardware with 24bit, 48kHz codec, 32 bit floating point processing and reasonable power consumption

Pairs well with EVERYTHING esp. the Phonogene

http://www.makenoisemusic.com/erbe-verb.html
