Dimensions
8 HP
43 mm deep
Current Draw
74 mA +12V
86 mA -12V
0 mA 5V
Price
$215 Price in €

This Module is currently available.

Dual Stereo Low Pass Gate and Mixer

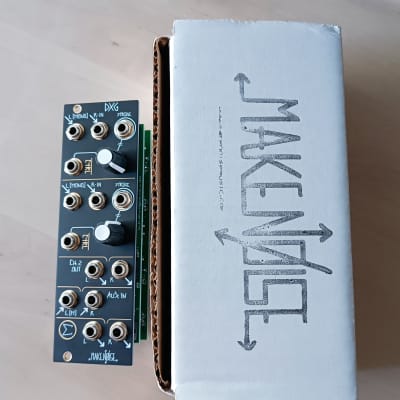

The Dual Stereo Gate (DXG) music synthesizer module is a Dual Stereo Low Pass Gate and Mixer. It follows in the footsteps of the QMMG, Optomix, RxMx, DynaMix, and LxD. Unlike its predecessors, the DXG is specifically oriented around mixing stereo signals, making it an important addition to any system containing modules like XPO, QPAS, Morphagene, Mimeophon,Spectraphon, and other stereo modules by Make Noise or others.

Unique to the DXG is a new low pass gate circuit that does not use vactrols. This circuit is 100% analog and its response was arrived at after many months tailoring »

Features

Vactrol-free design for classic Low Pass Gate sounds, but with the balance and consistency needed for true Stereo

Fully Stereo i/o for easy integration into a Stereo-equipped modular synthesizer

All Left inputs normalled for easy use with Mono signals

STRIKE INput allows use of Gate signal to trigger Low Pass Gate circuit, creating “plucking" or "pinging" sound from any Gate

Summing stage with Stereo AUXiliary IN allows for chaining of multiple units, creating larger mixes

Part of a decentralized mix console integrated throughout the system along with X-PAN, Optomix, XOH, etc.

Pairs well with XPO, QPAS, Morphagene, Mimeophon, Spectraphon etc.
