20 HP
40 mm deep

Module is a 1U tile in Intellijel format

Current Draw
20 mA +12V
0 mA -12V
70 mA 5V
$139 Price in €

This Module is currently available.

Specs are approved by the manufacturer

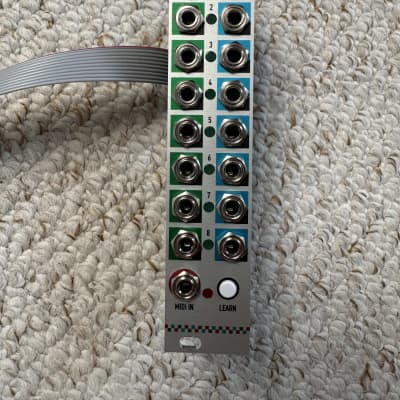

8 Channel Midi to Gate+Velocity

You are looking for a fast and easy way to convert drum trigger signals from your Beatstep Pro/Digitakt/whatever ? This is it!

  • 8 gate outputs
  • 8 corresponding velocity outs
  • 3.5mm TRS MIDI input with auto-crossover (Standard or Korg pinning supported)
  • Easy setup process with learn button


backside of the module:

  • MIDI Thru and MIDI input for chaining multiple modules w/o the need for an external MIDI-Thru (compatible with new WK3, SCHLEUßIG and other modules with internal MIDI like MI Grids, ALM Pamela etc.)
  • 5V from Bus or internal 5V operation with a switch

Tile 1RU format or 5HP 3RU panels can be made on demand (added costs tho)
3U/5HP version here:

Alternative Firmware N° 1 available now in beta (download on the website):
Gate Outputs:
1: Run signal - goes high with start low with stop
2: clock 24ppqn
3: clock 4ppqn aka 16th triggers.
4: 8th note trigger
5: clock 1ppqn aka quarter note triggers
6: half note shifted by a quarter (simple snare position)
7: beginning of bar pulse
8: 16th divided by 3 clock
Velocity/CV Outputs:
1: random triggered each 16th
2: random triggered each 16th
3: brownian random triggered each 16th (drunken walk)
4: random triggered each quarter
5: random triggered each quarter
6: brownian random triggered each quarter (drunken walk)
7: random triggered each bar
8: 16th stepped ramp to go from 0-5V in a bar
Learn button is a momentary freeze for current CV output values

Alternative Firmware N°2

Ideal for all Elektron users (probably others too):
The same 8 Gates as in the stock firmware but 8 CCs (69-76) on the CV outputs.

Download from the Modules page on the website (see below)
