Dimensions
28 HP
48 mm deep
Current Draw
15 mA +12V
15 mA -12V
0 mA 5V
Price
$299 Price in €

This Module is currently available.

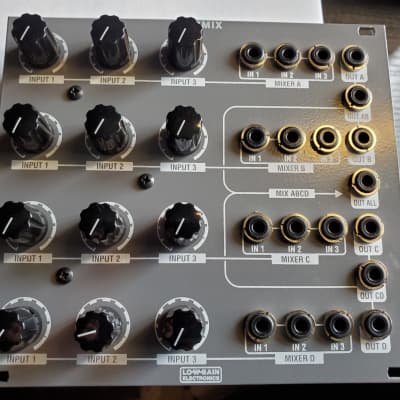

Multiple Routing Mixer Module

The new SubMix has been redesigned for comfort and even more flexibility!
It now contains FOUR 3 channel active, with linear attenuation inputs. with their own respected mix outputs (we'll label them A,B,C,D for now)
Their are now 3 SubMix outputs that are active all the time.
These outputs are for AB, CD and ABCD mix outs. So effectively you get:

(4) 3 channel mixers
(2) 6 channel mixers
(1) 12 channel mixer

The module will be skiff friendly!

The SubMix is CV and Audio friendly, keeping in mind you will have offset/clipping if you use submix outputs of mixers that are mixing AC AND DC signals.

You can also take advantage of the submix outputs and play around with feedback loops!
