Dimensions
16 HP
38 mm deep
Current Draw
180 mA +12V
160 mA -12V
10 mA 5V
Price
$408 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Dual Analog Triangle VCO with Through Zero FM - Precision tracking

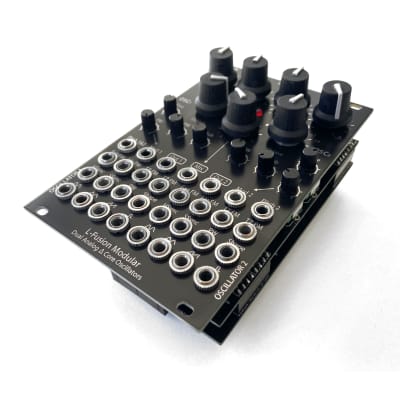

Eurorack dual analog VCO 16HP module with through zero FM - Precision tracking triangle core

Dual analog triangle core voltage controlled oscillator (VCO) 16HP Eurorack module with through zero FM modulation based on SSI2130 ICs; features precision analog exponential converters, triangle oscillator cores, waveshapers as well as high quality voltage controlled amplifiers for wave mixing.

Each VCO in the module outputs sine, triangle, saw and square/pulse waves,also voltage controlled mix of them with sub oscillator an octave below controlled with integrated crossfader mixer.

Both oscillators can be modulated with exponential and linear FM, as well as through zero FM/PM, wave shape and pulse width CV. To ease modulation for each oscillator we have added separate sine outputs with variable gain controlled with modulation knob.

Module also offers master crossfader to mix the outputs of the two oscillators, octave selector switch for each oscillator, as well as knobs for shape, pulse width, pitch and fine tuning. Module is designed using precision voltage reference and other high quality components to achieve +/-1ct (+/-0.01 semitone) tuning across 10 octaves- well below human ear pitch sensitivity which is around 3-5ct.

All inputs and outputs are ruggedized - able to handle rail to rail voltages +12V..-12V.

All potentiometers are precision Alpha variety, module is made using high quality electronic components, features rubber knobs with soft touch for easy grip and pleasant tactile feedback.

Module is available with and without 1kΩ compensation. Compesation is required when used with pitch CV modules with 1kΩ impedance such as Moog Mother 32, MST '07 Buffered Multiple and others. Doepfer and other new modules have buffered 0kΩ impedance on pitch CV, non compensated version should be used in this case

Revision 2.0: Newer OpAmps and gold plated contacts.

Revision 2.1: Improved Pitch stability, tracking and TZFM precision. Removed octave switch trimmers for easier tuning - instead used precision parts for fixed octave switching accurate within 1ct.

Revision 2.2: octave switch changed from 6 to 8 positions for more modulation options, added startup circuit to prevent VCO lockup on start for those with asymmetric power supplies, modern JFET/CMOS OpAmps for reduced power consumption, extra precision parts for accurate sine outputs with virtually no offset, high end exponential scaling trimmers for even more accurate pitch tracking.

VCO demo and feature review:

Power consumption: +12V - 180mA, -12V - 160mA, +5V - 10mA
Module width: 16HP
Module depth: 3.8 cm
Modulation: 1 volt/octave - +5V..-5V or 0..10V
Tuning precision: 10 octaves +/-1ct (+/-0.01 semitone)
Frequency range: 0.5Hz - 20kHz
Noise level: -90dB
Input impedance: 100kΩ
Output impedance: 1kΩ
