Dimensions
10 HP
Current Draw
7 mA +12V
123 mA -12V
0 mA 5V
Price
$290 Price in €

This Module is currently available.

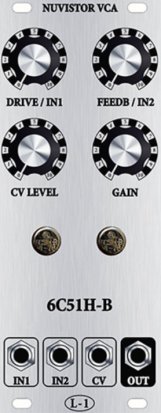

VCA based on vintage soviet nuvistors 6C51H-B.

Nuvistor is a type of vacuum tube but in metal can instead of glass. Nuvistor is top-notch of tube development.

The device has feedback loop which is normaled to IN2 jack, so IN2 pot controls feedback amount when nothing feed into IN2 jack and feedback switch is on. When jack feed into IN2, IN2/FEEDB pot controls IN2 level. Distortion/clean switch controls two modes with more or less distortion which amount can be trimmed with trimpots through holes at panel. Drive/IN1 pot controls IN1 level. GAIN pot controls gain offset. CV pot controls gain CV level.

http://l-1.su/NuvistorVCA.html


submitted Apr 12th, 17:54 by mdling | last Change Yesterday, 20:00 by Hikove
