Dimensions
8 HP
21 mm deep
Current Draw
52 mA +12V
17 mA -12V
0 mA 5V
Price
$282 Price in €

This Module is currently available.

Specs are approved by the manufacturer

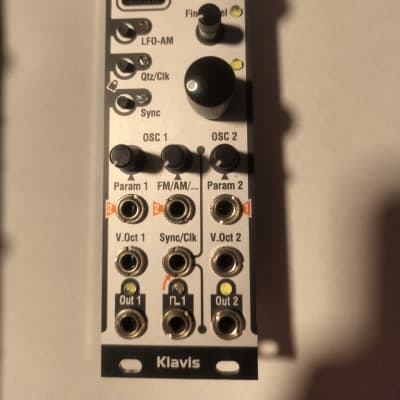

Voltage-controlled Dual VCO / LFO / random

Two oscillators independently set as VCO, LFO, or random generator
This new version replaces the original Twin Waves. All features of the former are retained. You can check all videos, reviews and comments of V1, being sure to benefit of all in the MKII version :-)

Features in VCO mode:

  • V/Oct tracking over 10 octaves
  • Tuning lock with octave selection
  • Through zero and linear FM
  • Sub-octave output
  • Hard & soft synchronization
  • VCA control and CV algorithms selection
  • Quantizer with various scales
  • 20 algorithm-based synthesis types among:
    • Wave shaping
    • Phase modulation
    • Phase positioning of multiple waves
    • Up to 5 stacked oscillators in tunable unison
    • Self-sync with phantom oscillator
    • Additive synthesis (7 waves)
    • Variable bit reduction (bit-crushing)
    • Ring modulator with its own 2nd oscillator
    • Noise with LPF, BPF, or resonant filter

Features in LFO mode:

  • Simultaneous signal and trigger outputs
  • External wave synchronization
  • Clock controlled rate with voltage controlled multiplier and divider
  • CV and knob control of output level
  • Algorithm based wave engine with a selection of:
    • Wave shaping
    • Phase modulation
    • Random levels and vectors (also Brownian)
    • Randomly spaced triggers and waves

Display with contextual icons and instant reminder help text
LEDs indicating potentiometer vs. value matching, switch settings and output signals
Automatically saved settings for instant recall at power on
Firmware update by playing an audio file via the front panel
Compact and skiff-friendly module

https://www.klavis.com/all-products/twin-waves-mkii


Ø 4.71 (45 Votes) Average Rating
submitted Oct 26th 2020, 04:25 by Klavis | last Change Feb 23rd, 09:21 by Klavis
