Dimensions
6 HP
45 mm deep
Current Draw
100 mA +12V
100 mA -12V
0 mA 5V
Price
$215 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Stereo Balanced Line Outputs

Whether it's in the studio or on a live stage, keeping audio interconnections free from unwanted hum and interference can be a challenge. Balanced lines are the proven solution to this problem.

Conventional balanced output solutions often rely on transformers providing galvanic isolation to mitigate the effects of ground loops. Unfortunately, these components are bulky, expensive and colour the sound (often unfavourably, especially in the low end).

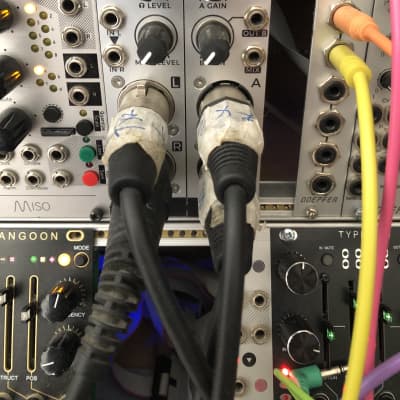

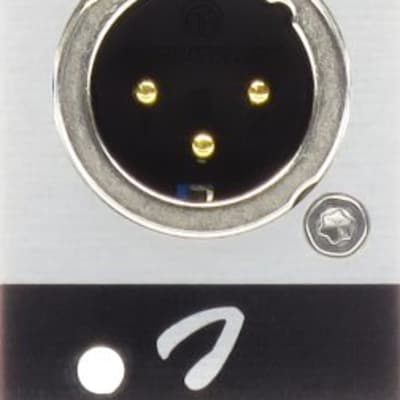

Instead, Transmit 2 (or TX2 for short) takes a fully solid-state approach. Offering a stereo pair of XLR balanced outputs, it ensures that the sonic clarity of your carefully planned modular system is not lost in its interface to the outside world.

Engineered to provide massive headroom while retaining extremely low noise and distortion, Transmit 2's circuitry incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced drivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic (ESD) and phantom power discharge protection, it’s rugged enough to survive the rigours of performing on the road.

Adjusting the main output level is a breeze thanks to the dual peak-responding LED meters. A high-end headphone amplifier is included as well, controlled by a separate level knob. It can deliver the voltage and current required to power practically any headphones, regardless of the impedance or driver technology. This 3.5 mm stereo socket can function as an auxiliary stereo line output or even drive small passive speakers, making Transmit 2 an all-round flexible answer to all your output needs.




Mod Wiggler forum thread: https://www.modwiggler.com/forum/viewtopic.php?t=211498

https://joranalogue.com/transmit-2


Ø 4.75 (24 Votes) Average Rating
submitted Dec 31st 2018, 23:56 by joranalogue | last Change Oct 2nd 2023, 07:58 by joranalogue
