Dimensions
8 HP
30 mm deep
Current Draw
25 mA +12V
25 mA -12V
0 mA 5V
Price
$130 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Performance Switcher/Router

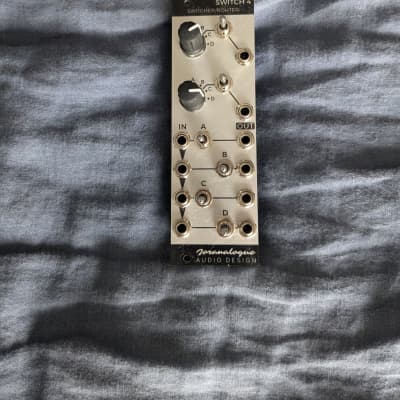

Designed with and for performing artists, Switch 4 delivers a hands-on signal switching and routing solution for your Eurorack modular synthesiser.

Quickly mute audio signals, trigger envelopes live, select modulation sources on the fly... With custom dual-action toggle switches, an intuitive interface and sturdy construction, Switch 4 will prove just as useful on stage as in the studio.

The bottom switching section includes four lever-actuated toggle switches, to make or break the signal path between the inputs and outputs. These switches feature a dual action: latched upwards, momentary downwards.

The four input signals are also sent to the top routing section, where two rotary switches allow you to select the signals to be sent to the matching outputs. Here you'll also find dual-action toggle switches, for added versatility.

Finally, all signal paths are buffered, avoiding signal cuts when shorting a jack during patching or severe loading effects when driving many inputs. The high-end components provide exceptionally low noise and distortion, so Switch 4 can reliably process audio, control voltages and gates/triggers.




Mod Wiggler forum thread: https://www.modwiggler.com/forum/viewtopic.php?t=182457

https://joranalogue.com/switch-4


Ø 4.50 (18 Votes) Average Rating
submitted Mar 30th 2017, 15:53 by joranalogue | last Change Oct 2nd 2023, 08:00 by joranalogue

19 Users are observing this
