Dimensions
6 HP
21 mm deep
Current Draw
26 mA +12V
27 mA -12V
0 mA 5V
Price
$160 Price in €

This Module is currently available.

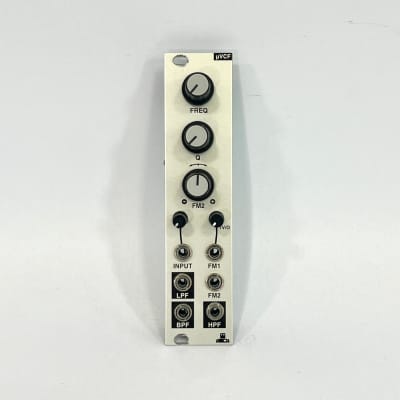

SVF filter and Sine VCO

This is another great David Dixon filter design that has been on the workbench for a while. It is a very clean and precise filter that also doubles as an excellent sine VCO.

It responds very well to FM and the small size should make it a nice choice for smaller systems/lunchboxes.

  • low pass (LPF) 2-pole , high pass (HPF) 2-pole and bandpass outputs (BPF) 1-pole.
  • FM1 input acts as 1V/Oct when full CW tracks very well over 4+ octaves
  • FM2 input has a bipolar attenuator
  • At full Q you get very low distortion sinewaves with a range of 2Hz to 20Khz

http://www.intellijel.com/eurorack-modules/%C2%B5vcf/


Ø 4.25 (52 Votes) Average Rating
submitted Oct 12th 2012, 23:07 by intellijel | last Change May 15th, 21:32 by mha

21 Users are observing this
