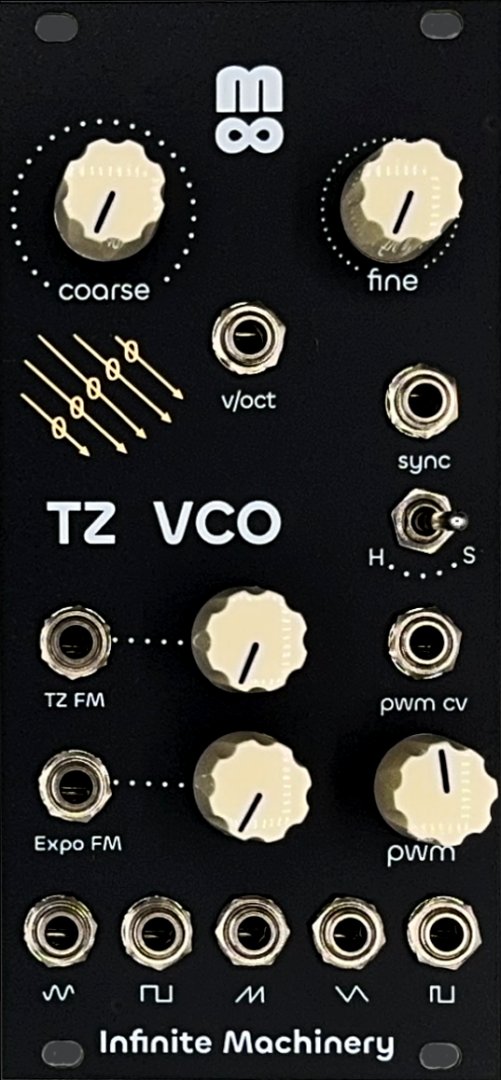

TZ VCO

Full featured VCO with thru zero FM

The TZ VCO is a VCO based on the Sound Semicondutor 2130 integrated circuit.

• Supports true thru-zero FM
• Exponential FM
• Sine, Square, Triangle, Saw, Pulse waveform outputs
• Hard/Soft sync input, toggle switch selectable

CV Inputs
* 1V/Oct CV input
* PWM CV input, 0 - +5V input

• 12HP format
• Coarse and fine tuning
• +33mA, - 31mA current usage
