This Module is a prototype or in a concept phase.

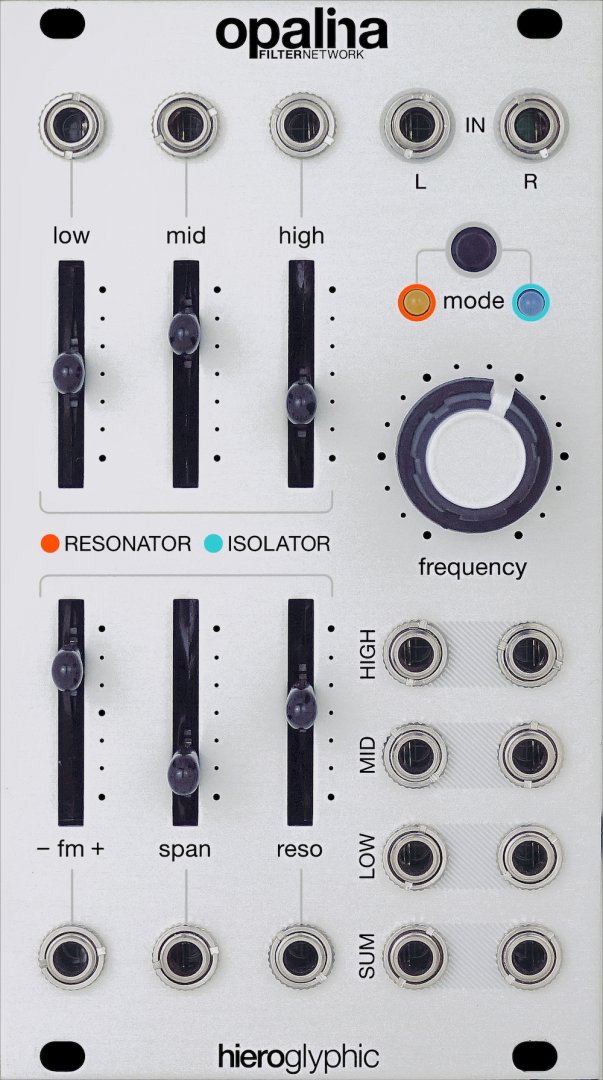

Specs are approved by the manufacturerStereo Filter Network
State-variable filter networks configurable in two modes.
· RESONATOR: triple bandpass filters with vc peak span and resonance. 12db/oct filter slopes.
· ISOLATOR: cascaded state-variable filters with vc bandwidth and resonance. 24db/oct filter slopes.
· Completely analog signal path.
· Individual band inputs and outputs.
· Continuously variable band input amplitude.
· Soft-clipping circuit on SUM output.
· Dual channel for use in stereo (L & R).
