Dimensions
6 HP
29 mm deep
Current Draw
75 mA +12V
75 mA -12V
0 mA 5V
Price
$180 Price in €

This Module is currently available.

Specs are approved by the manufacturer

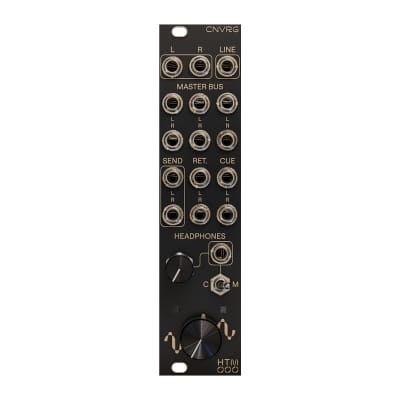

All-in-one stereo output

Cnvrg is a compact output module with full stereo I/O. Its features include:

  • Three master bus stereo inputs
  • One stereo insert, which can double as a fourth stereo input
  • One cue input for headphones monitoring
  • Three stereo outputs for the master bus (headphones, line and eurorack)
  • Master volume control with up to 6dB gain and VU meter

Two connectors on the back provide line-level inputs for the cue bus and master bus, as well as full balanced outputs. These connectors are compatible with Intellijel Palette cases or similar.

Technical specifications:

  • Bandwidth (-3dB, eurorack inputs): 1.6Hz to 23.4kHz
  • Bandwidth (-3dB, line inputs): 10.6Hz to 23.4kHz
  • THD+N (all I/O, 10Vpp, 1kHz): typ. 85dB
