Dimensions
22 HP
30 mm deep

Module is a 1U tile in Intellijel format

Current Draw
130 mA +12V
70 mA -12V
0 mA 5V
Price
$350 Price in €

This Module is a prototype or in a concept phase.

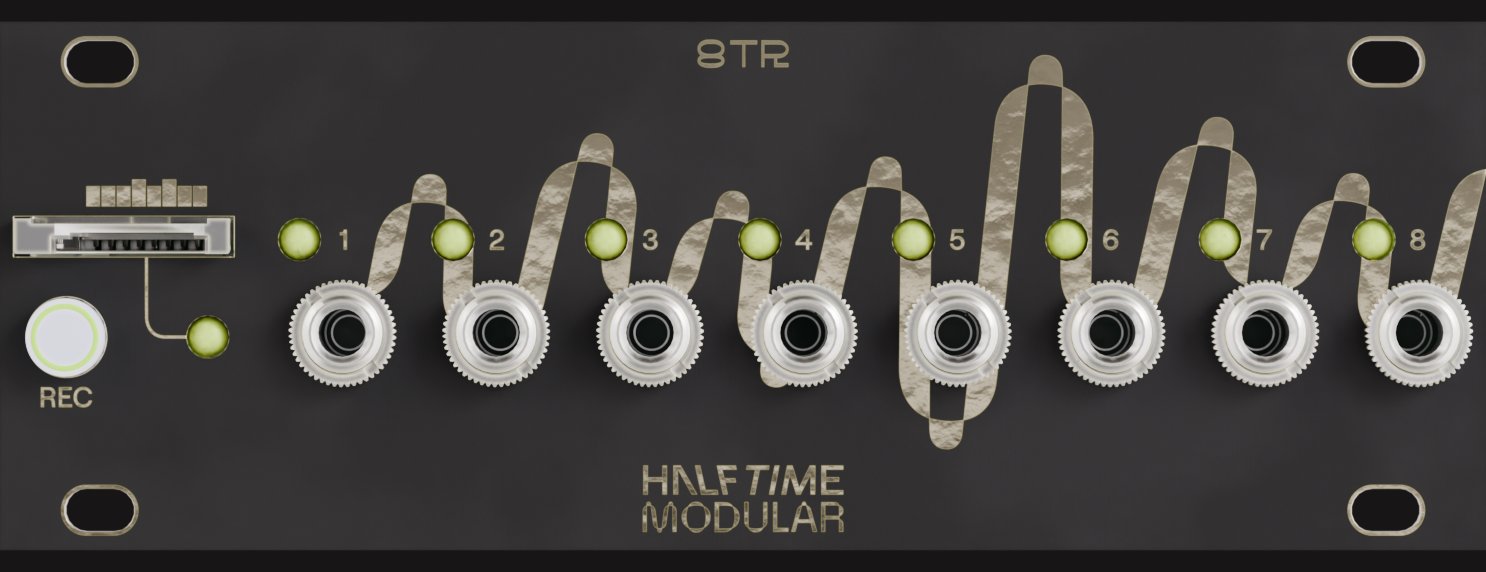

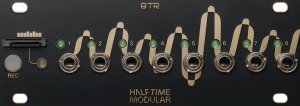

8 track recorder

8TR is a high quality, eight audio channel multitrack recorder.

  • Recording quality up to 24 bit, 48kHz
  • AC coupled inputs, full ±12V range
  • Input VU meter per channel
  • Tracks are recorded as a single multichannel .WAV file
  • No recording length limit except total memory available
  • 32GB uSD card included, about 8 hours recording at 24/48
  • Memory warning LED
  • Connect several 8TR together for sample accurate start and stop
  • Skiff friendly

Equivalent Input Noise:
Unweighted RMS: -106dBFS
A-weighted RMS: -110dBFS

Frequency Response 20 Hz – 20 kHz: ±0.2 dB

THD (1kHz, 5Vpp): typ. 0.004%

Crosstalk (1kHz, 5Vpp): typ. -115dB

The 9J expander (3U only) provides copies of the eight inputs, as well as a trigger input to start and stop the recording.

Available 10.2025.
