Dimensions
4 HP
35 mm deep
Current Draw
10 mA +12V
10 mA -12V
0 mA 5V
Price

Available as an assembled Module and as a DIY project.

This Module is currently available.

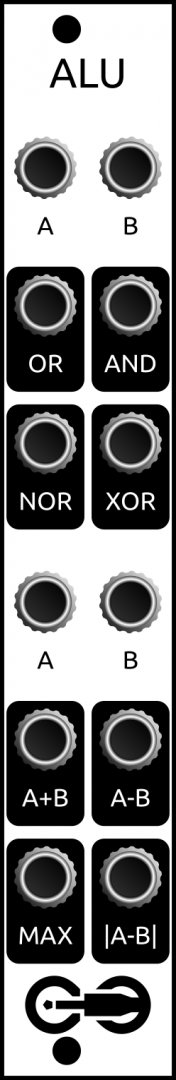

Multi-purpose math/logic utility

A multi-purpose utility module for performing various mathematical functions with voltage.

ALU (named for the arithmetic logic unit of a CPU) has two independent parts: a logic section capable of computing AND, OR, NOR, and XOR on two input gates, and an arithmetic section that can compute the sum, difference, maximum, and absolute value of two analog input signals.

https://freemodular.org/modules/Logic


submitted Jun 18th, 17:38 by FreeModular | last Change Jun 18th, 17:40 by FreeModular
