Dimensions
6 HP
38 mm deep
Current Draw
35 mA +12V
35 mA -12V
? mA 5V
Price
$140 Price in €

This Module is currently available.

Specs are approved by the manufacturer

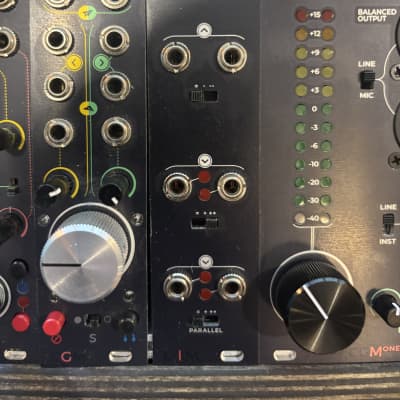

CGM Creative Mixer Insert

The insert module allows you to connect stereo effects to your CGM setup, either by inserting them between two points of the internal summing bus or by placing them in parallel, as in a rudimentary stereo send-and-return.

It consists of two couples of outputs and inputs with dedicated gain switches. The first O/I stereo couple is the insert circuit, while the second is the parallel circuit.

The Insert module can be used:
* between a group and a master;
* between a group and a group;
* between a channel and a group;
* between a channel and a channel;
* between a channel and a master (without a group).

https://frap.tools/i


submitted Apr 23rd, 09:51 by fraptools | last Change Apr 23rd, 15:36 by fraptools
