Dimensions
6 HP
25 mm deep
Current Draw
45 mA +12V
25 mA -12V
0 mA 5V
Price
$139 Price in €

No info about availability.

Specs are approved by the manufacturer

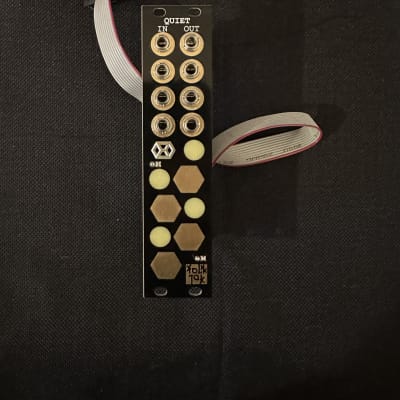

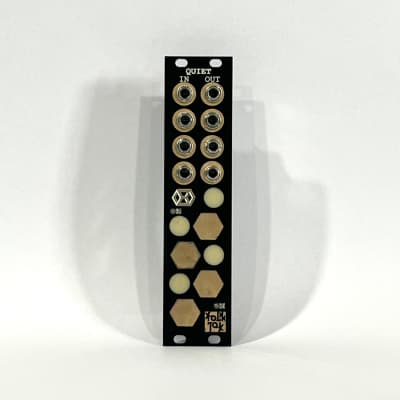

Four Part CV/Audio Mute

A simple but effective mute for audio or CV signals with a latching on/off. Each of the four parts has 3.5mm input and output jack with corresponding touch button and light. Allows for a more hands on experience when patching by allowing the player to turn a passing signal on and off. This is an extremely important addition to any Eurorack system for anyone who wants greater control over the mix and wants to be able to simply add or subtract CV or audio signals on the fly.

TOUCH PADS, INPUTS/OUTPUTS
- Four hexagonal touch-based buttons
- Accepts any incoming CV, gate, trigger, audio source.
- Light indicates signal is passing when lit, muted when dark.

SPECS
+12V: 45mA
-12V: 25mA
+5V: 0mA
6HP width
25mm depth

https://folktek.com/collections/modular/products/quiet
