963

Sequencer Utility

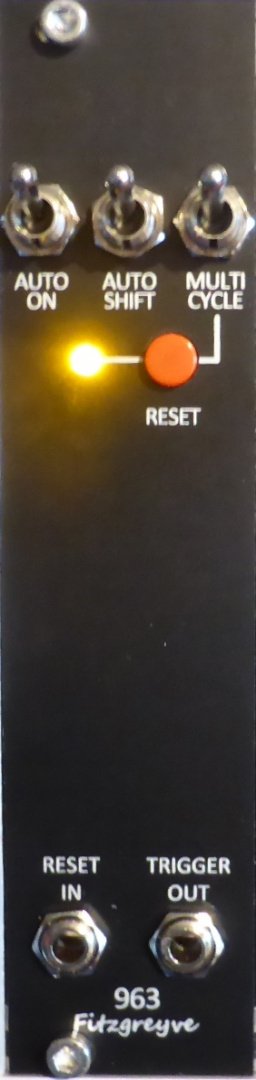

This is a eurorack version of the Moog sequencer utility module made for the University of New York CEMS system.

It is designed for use with the Behringer 960 Sequential Controller and 962 Sequential switch, and gives the following functions:
- direct connection of 960 outputs to 962 inputs (optional) *
- switched auto start: 960 OUT 1 to 960 OSC ON *
- switched auto cycle: 960 OUT 1 to 962 SHIFT IN *
- switched multicycle: runs through one 960 cycle, then stops.
- trigger (end of cycle) output and reset input.

Note that functions marked * are achievable without the 963 using front panel patching, the multicycle function is not.

To use the module, soldered connections need to be made to the 960 and 962. For maximum flexibility modifications need to be made to the 962 (replacement of 2/3 stage auto switching with a toggle switch, free up switched contacts on some input jacks).
