Dimensions
8 HP
43 mm deep
Current Draw
51 mA +12V
19 mA -12V
0 mA 5V
Price
$175 Price in €

This Module is currently available.

mic/instrument pre-amp with phantom power

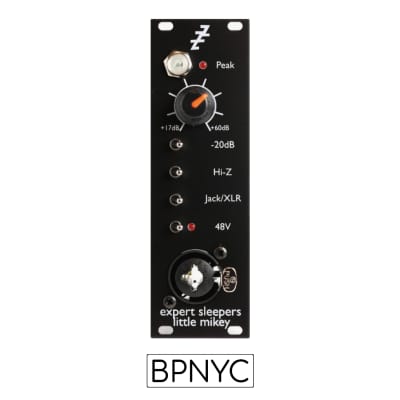

Little Mikey is a mic/instrument pre-amp in an 8HP Eurorack module, providing up to 60dB of exceptionally clean gain.

It will provide 48V phantom power to condenser microphones and other phantom-powered equipment, and has a high impedance input option allowing direct connection of e.g. electric guitars.

Little Mikey's specifications are as follows:

  • Panel width: 8HP
  • Module depth: 43mm
  • Current draw: 51mA on the +12V rail, 19mA on the -12V rail
  • Input: Combination XLR/¼" TRS Jack socket (genuine Neutrik)
  • Output: 3.5mm jack socket (illuminated)
  • Controls: 1 pot, 4 switches
  • Gain range: -3dB to 60dB
  • Input impedance (Hi-Z engaged): 1MΩ
  • Phantom power: 48V
  • Indicators: Peak level, phantom power

http://expert-sleepers.co.uk/littlemikey.html
