Dimensions
10 HP
29 mm deep
Current Draw
50 mA +12V
50 mA -12V
0 mA 5V
Price
$179 Price in €

This Module is currently available.

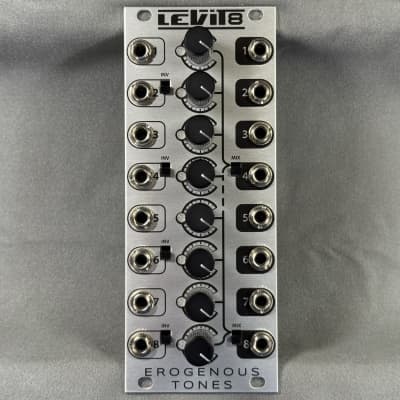

8x Attenuator/Gain/Invert/DC-Offset/Mixer

A high density utility module designed to give you a large number of attenuator/gain functions along with optional mix, invert, DC offset and polarity indication for incoming signals.

Overall Features:

-8 channels of attenuate or gain up to ~2x
-Each channel normalized to provide up to 10v DC when no signal attached.
-4 of the input channels can be inverted

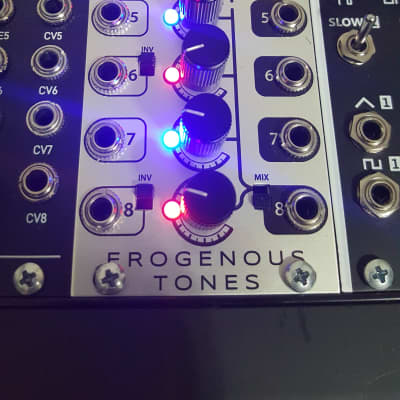

-Bi-color (red/blue) LED is after the inverter so you always know signal polarity
-Output mix configuration can be used with 3 different topologies
-Channel 4 mix engaged will mix channels 1-4 out channel 4 output
-Channel 8 mix engaged with Channel 4 mix also engaged, 1-4 out channel 4 and 5-8 out channel 8
-Only channel 8 mix engaged, 1-8 out channel 8
-channels 1,2,3,5,6,7 still provide straight through signal regardless of mix setting
-Aluminum knobs with knurled edge for easy manipulation
Skiff Friendly (Very shallow)
