Dimensions
6 HP
26 mm deep
Current Draw
120 mA +12V
15 mA -12V
0 mA 5V
Price
$209 Price in €

This Module is currently available.

Specs are approved by the manufacturer

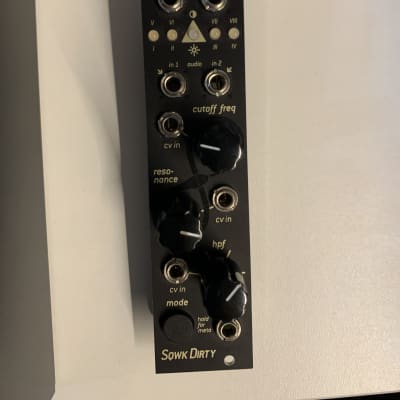

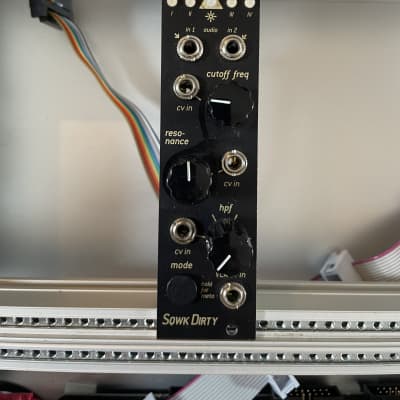

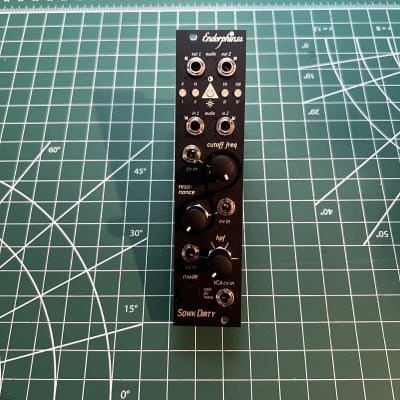

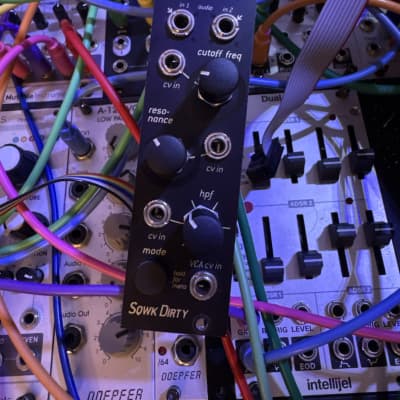

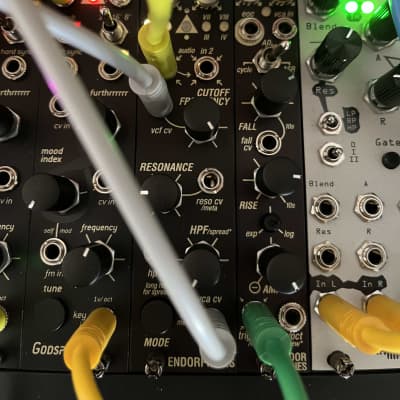

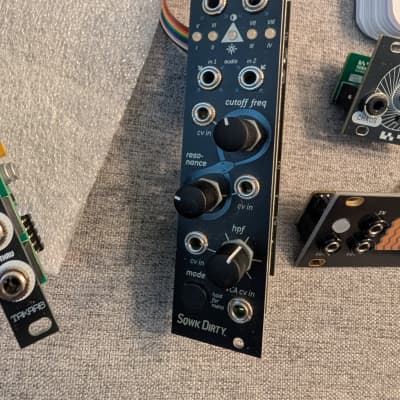

8 mode zero-delay feedback stereo filter with Meta CV scan

  • Simple and effective 6hp stereo VCF.
  • 8 filter modes available with meta CV scanning, famous zero-delay feedback Grand Terminal filters: 24DB/OCT TRANSISTOR LADDER, MS-20 12DB/OCT, 12DB/OCT LOW PASS GATE, 12DB/OCT RESONANT LOW PASS GATE, 12DB/OCT DJ ISOLATOR BIPOLAR VARIABLE FILTER, 12DB/OCT HIGH PASS STATE VARIABLE FILTER, 12DB/OCT BAND PASS STATE VARIABLE FILTER, COMB FILTER / RESONATOR.
  • Additional hi-pass filter in series quickly cuts the boomy low end.
  • Stereo image widener with adjustable all pass filter delay on Right output.
  • Built in post filter vca for compact voice setup.

https://www.endorphin.es/modules/p/squawk-dirty-to-me


Ø 3.48 (21 Votes) Average Rating
submitted Apr 16th 2019, 14:15 by Endorphines | last Change May 5th 2022, 19:39 by Endorphines
