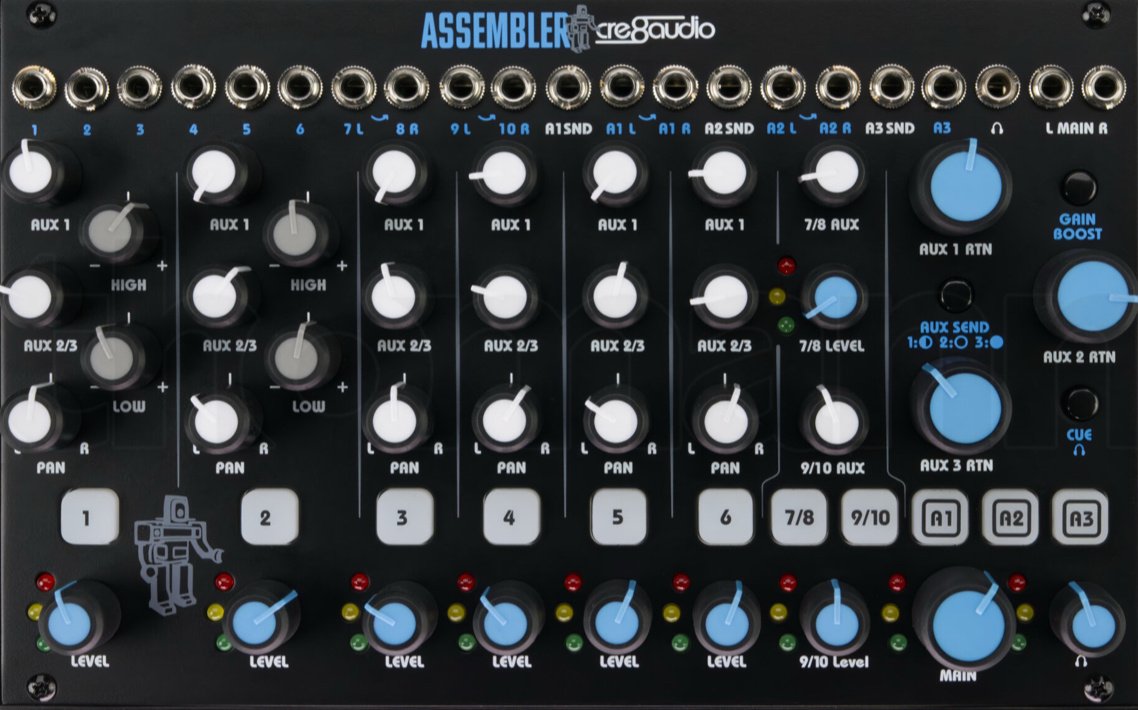

Assembler

10-Channel Euro & Desktop Mixer

10-Channel Mixer
• 6 mono and 2 stereo channels
• Mono channels with 2 aux send (1 assignable), pan, mute, assignable cue monitoring, up to 20 db gain, 3-stage LED display
• Channel 1 and 2 with additional EQ
• Stereo channels with aux send (assignable AUX 1, 2 or 3), mute, assignable cue monitoring, up to 20 db gain, 3-stage
LED display
• 3 Aux send: mono, post-fader
• 2 Stereo aux returns and 1 mono aux return
• Independent main and cue output levels
• Current requirement: +380 mA (+12 V) / -275 mA (-12 V)
• Eurorack and line level compatible
• Can be used standalone in the supplied housing or as a module in Eurorack format
• Width as Eurorack module: 40 HP
• Depth as Eurorack module: 30 mm
• Dimensions: 207 x 138 x 61 mm
• Weight: 0.85 kg
