Dimensions
4 HP
49 mm deep
Current Draw
20 mA +12V
20 mA -12V
0 mA 5V
Price
$175 Price in €

This Module is currently available.

Clock Divider Multi Mode

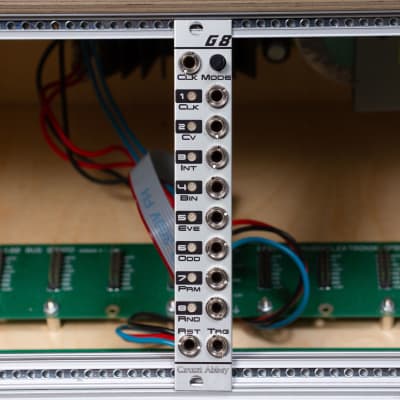

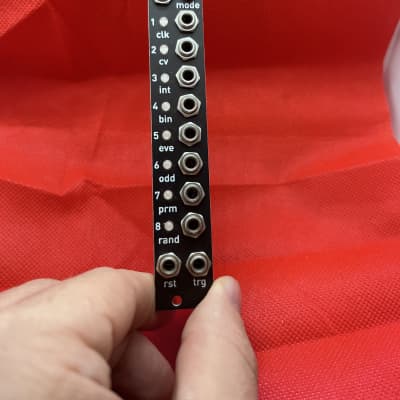

The G8 is a clock divider with 8 modes and 8 outputs. The modes include:

Clock: 1 of 8 sequencer output, like the A-161
CV: Same as above but with a CV input on the clock jack
Int: Divide by 2-9
Bin: Binary counter, 0-255
Even: divide by 2,4,6,8,10,12,14,16
Odd: Divide by 3,5,7,9,11,13,15,17
Prime: Divide by 2,3,5,7,11,13,17,19
Random: Output have a probability of 1/2 through 1/9

Mode switch selects the mode, and when held down selects trigger mode where all outputs are triggers instead of gates. Reset input is edge sensitive i.e. resets on a rising edge. Trigger output provides a trigger when the outputs change, useful in CV mode.

http://www.circuitabbey.com/g8.html
