Xcelon Xi3

Mini 3-Channel Mix Expander

More inputs, less HP

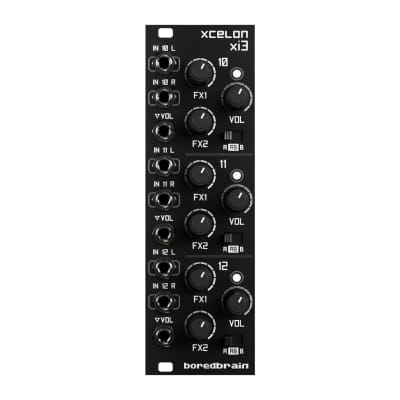

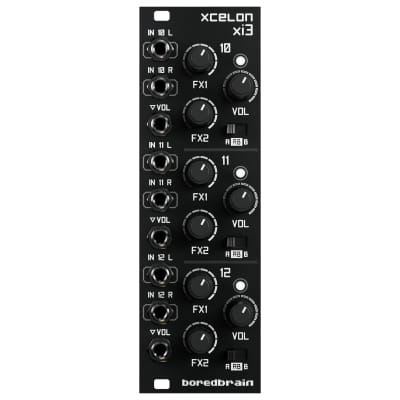

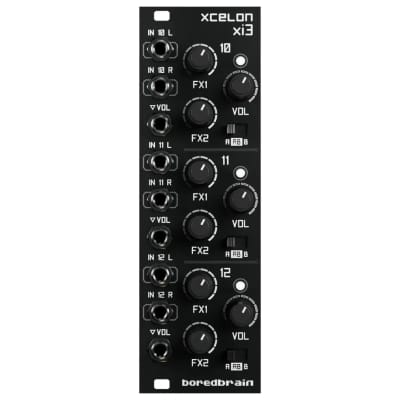

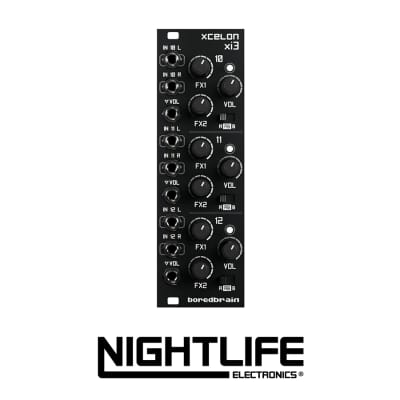

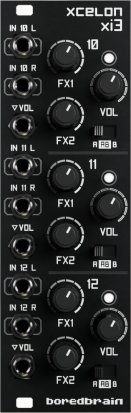

Xcelon Xi3 is a compact three-channel stereo audio input expander for the Xcelon eurorack mixer. The module includes core mixing features and connections meant to expand the number of mixer inputs without sacrificing valuable space.

Features
- Adds three stereo/dual-mono channels to Xcelon mixer in just 8 HP
- Two stereo FX sends and two stereo output mix busses selectable per-channel
- VCA-based volume controls with CV input and responsive LED indicators
- Configurable jumpers for dual-mono operation allowing up to six mono sources
- Pre/post-fader direct output ports for all three stereo channels

Technical Specs
- Audio Inputs: 6 x 3.5 mm jacks (3 stereo pairs)
- CV Inputs: 3 x 3.5 mm jacks (0 to +5 V)
- Input Impedance: 47 kΩ
- Width: 8 HP
- Depth: 1.5 in (38 mm)
- Weight: 4.4 oz (125 g)
- Power: +12 V 55 mA, -12 V 50 mA
