22 HP
33 mm deep
Current Draw
170 mA +12V
170 mA -12V
0 mA 5V
$220 Price in €

This Module is currently available.

Specs are approved by the manufacturer

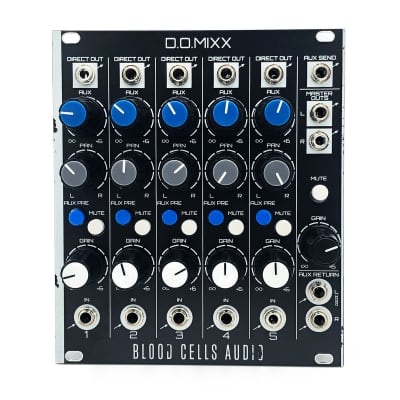

5-channel Mono to Stereo Mixer with Direct Outputs

D.O.MIXX was created based on a couple of simple desires - to not only have a quality in-the-rack mixer as the last thing in the modular signal chain, but to also have an easy means to grab a Direct Output from each channel, so more detailed mixing can take place in a DAW after the fact. These Direct Outs can also be used to route the channel wherever you’d like back into the modular system - a single-channel buffered mult if you will. Beyond that, there are other standard mixer features such as an Aux Bus (with Pre/Post send switch), stereo panning, and click-less muting on each channel. All level knobs range from ∞ to +6 dB of gain.

Direct Outputs are post-gain/mute.

Note this mixer is AC-coupled, and as such is only suitable for audio signals, not CV.


*Separate Direct Output per channel for further mixing in DAW
*∞ to +6 dB gain on all level knobs
*Stereo panning and click-less muting
*Mono Aux Send, and Mono or Stereo Aux Return. Sends have Pre/Post option per channel for flexible use as a monitoring system (Pre), or as a typical FX send (Post).
*High quality, low-noise analog signal path (THD+N .005%; 1 kHz @+15 dBu with 0 dB gain)
*Reverse voltage protection (in addition to shrouded header)
*Includes power cable and 4 mounting screws
