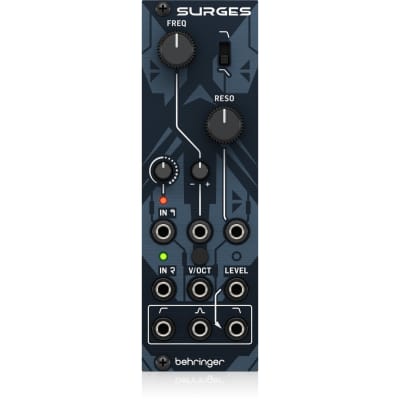

SURGES

Analog Four-Pole Filter

(Mutable Instruments Ripples Clone)

Multimode filter

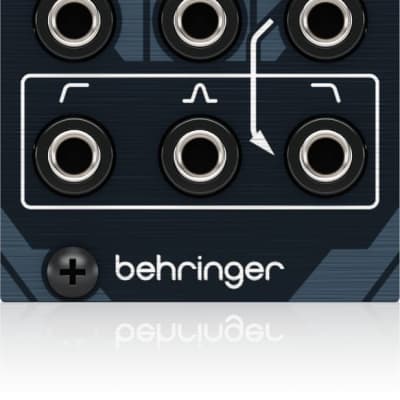

  • High-pass, band-pass, and low-pass outputs.
  • Switchable slope control for the band-pass and low-pass outputs. The slope of the high-pass output varies with resonance.
  • The low-pass output goes through an internal VCA - the perfect “end of subtractive chain” output!

CV inputs

  • Un-attenuated frequency CV, calibrated for 1V/Oct tracking of the self-oscillation tone over 4 octaves.
  • Frequency CV with attenuverter.
  • Resonance CV. Self oscillation starts at 4V. Control voltages above 5V are non-linearly compressed, for fine control of resonance overdrive.
  • VCA level for the low-pass output.

Clone of the Mutable Instruments Ripples
