32 HP
43 mm deep
Current Draw
70 mA +12V
30 mA -12V
? mA 5V
$99 Price in €

This Module is currently available.

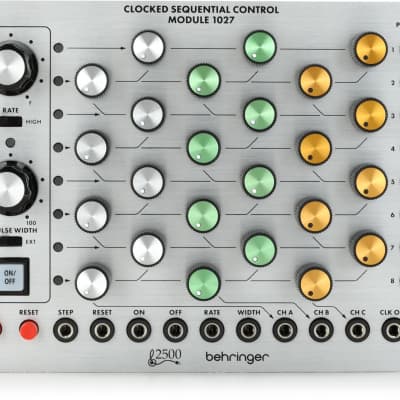

1027 Clocked Sequential Control Module

2500 Series Analogue Step Sequencer


This is the Behringer 2500 series CLOCKED SEQUENTIAL CONTROL MODULE 1027. An authentic reproduction of the original “System 2500” circuitry from the 70s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the CLOCKED SEQUENTIAL CONTROL MODULE 1027 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Sample and Hold
The CLOCKED SEQUENTIAL CONTROL MODULE 1027 is a classic 8-step 3 channel sequencer. The 1027 features integral 8-step counter with a large rate control knob and low/high range switch to set the perfect tempo for your masterpiece, the counter also features a pulse width control and a switch to enable external control for added flexibility, a large illuminated on/off switch and manual step and reset switches. The 3 sets of 8 color coded knobs allow you full control over the 3 CV output voltages to control external VCO frequency or filter cut off frequency for each step of the sequence.

Ins and Outs
The 1027 gives you comprehensive connectivity. The step and reset inputs allow remote control of the step rate and sequencer reset, while the on/off inputs allow other modules to start and stop the sequence. With the rate and width inputs you have full CV control of step rate and pulse width. Included are 3 sequencer outputs, provided to control any modules of your choice, as well as a clock output from the step counter. And finally, 8 position gate outputs that allow you to trigger other modules from any of the 8 steps.


Ø 2.67 (24 Votes) Average Rating
submitted Jan 27th 2021, 19:36 by Heinakroon | last Change Mar 19th, 19:07 by FG-Modular

15 Users are observing this
